FUJITSU ARTH24KMTAP 7.1kW Inverter Ducted System Mid Static Slimline 1 Phase |
by Fujitsu
$2,700.00
The Fujitsu General Mid Static Slimline R32 models are designed with a narrow 240mm high chassis and a built-in drain pump, giving flexibility for the system to be installed in tighter bulkhead and ceiling applications.
Specification:
| Indoor unit | ARTH24KMTAP |

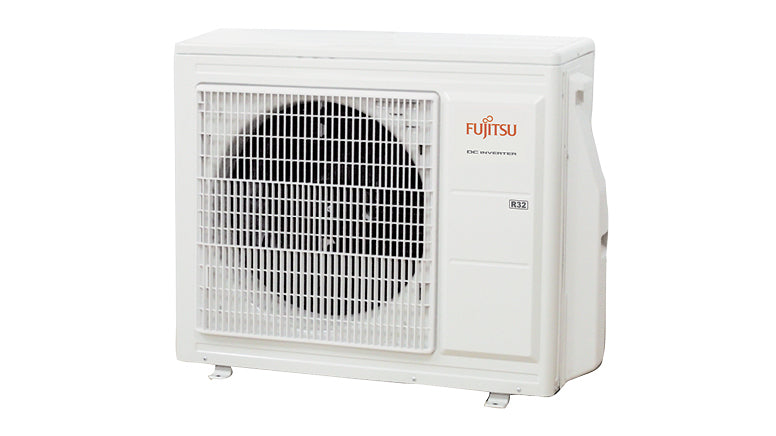

| Outdoor unit | AOTH24KBTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 240 / 1 / 50 |
| Cooling Capacity kW (Rated (Min – Max)) | 7.10 (1.8 – 8.1) |
| Heating Capacity kW (Rated (Min – Max)) | 8.00 (2 – 9.1) |
| Input Power Cooling kW (Rated (Max)) | 2.15 (2.92) |
| Input Power Heating kW (Rated (Max)) | 2.19 (2.67) |
| EER Cooling kW/kW | 3.3 |
| COP Heating kW/kW | 3.65 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 3 / 2 / 1.5 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 3 / 2.5 / 2.5 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.558 / 4.294 / 4.484 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.694 / 3.996 / 3.375 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.878 / 4.999 / 5.356 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.704 / 4.291 / 3.622 |
| Running Current amps (Cooling / Heating) | 9.1 / 9.2 |
| Moisture Removal l/hr | 1.7 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 38 / 27 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 38 / 27 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 48 / 50 |
| Outdoor Sound Power dBA | 68 |
| Static Pressure Range PA (Min to Max) | 50 to 150 |
| Air Circulation (Indoor – High Fan) Cooling l/sec | 416.67 |
| Air Circulation (Indoor – High Fan) Heating l/sec | 416.67 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 240 x 1000 x 700 |
| Indoor Unit Weight kg | 32.00 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 716 x 820 x 315 |
| Outdoor Unit Weight kg | 42.00 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 12.7 |
| Pipe Length m (Max (Precharged)) | 30 (20) |
| Max Height Difference m | 25 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 1,250 |
