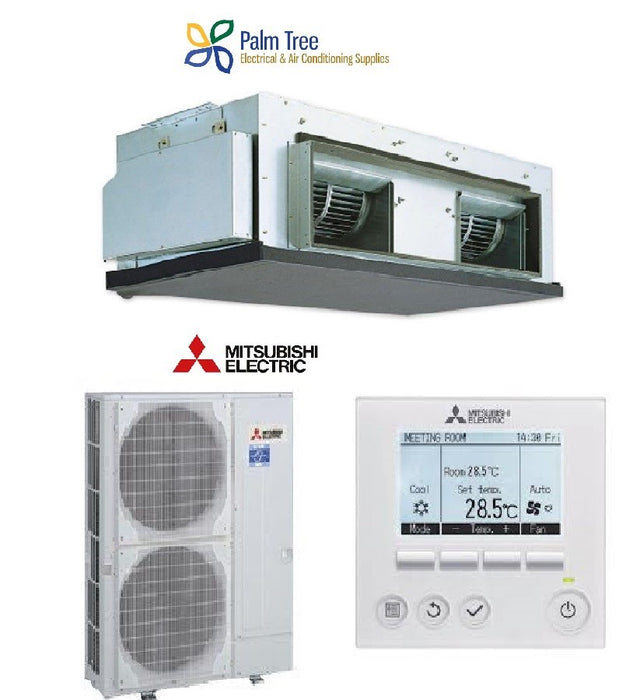

Mitsubishi Ducted PEA-RP140GAA 13.5 kW 3 Phase
Mitsubishi Electric provides high quality, reliable products that are ideally suited to the demanding Australian environment. You will find our air conditioners in Wee Waa and beyond. There’s nothing quite like coming inside and having 21 degrees, every room, every day. Mitsubishi Electric ducted air conditioner.
Advanced technology makes Mitsubishi Electric Power Inverter ducted air conditioning the premium choice for creating your living environment. It provides energy savings when compared to non inverter models. The reason our Power Inverters are more energy efficient is because the system output varies constantly to maintain your perfect living environment. This means that a Power Inverter will cool or heat your home more rapidly and maintain the desired temperature without fluctuations while using less energy.
Features :
Unobtrusive, whole home heating and cooling

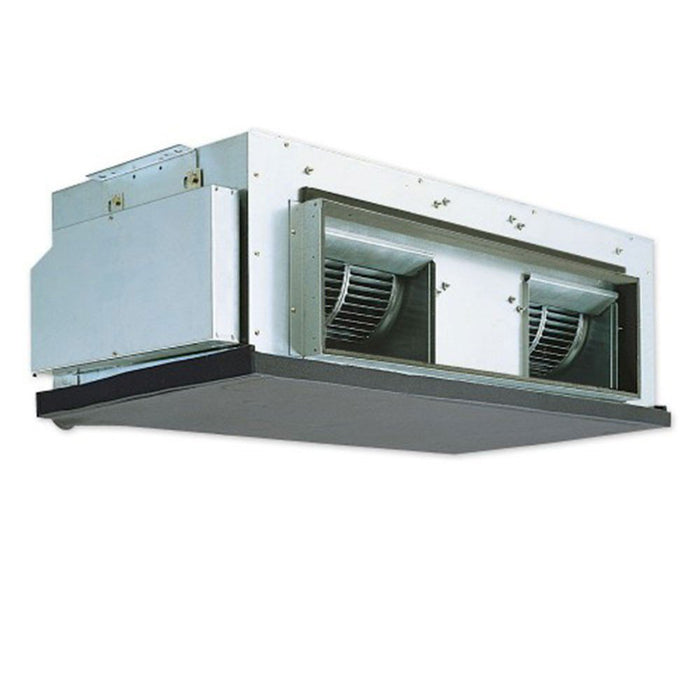

Our ducted systems are specifically designed for installation in ceiling spaces. Ideal for large residences or offices, ducted units are the ultimate hidden heating and cooling solution with only grilles visible.
Easy installation
Versatility and easy installation: you can adjust the distance between the air-intake and air-outlet vents to create optimal airflow.
Ideal airflow
The flexible duct design and high-pressure of our ducted systems increase variation in airflow options ensuring the system operates in a way that best suits virtually all room layouts.
Zone Control
Control 4 or 8 zones with the Mitsubishi Electric Zone Control . The optional Zone Controller features three built-in sensors (temperature, brightness & occupancy), and allows monitoring and scheduled operation of the air conditioning unit and zones. These features combine to provide a comfortable air environment and greater control over energy consumption and costs.
Deluxe PAR31MAA controller
This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail store.
Specification:
| Indoor Unit | PEA-RP140GAA | ||
| Outdoor Unit | PUHZ-RP140YKA2 | ||
| Cooling | Capacity (rated) | kW | 13.5 |
| Capacity (min. - max.) | kW | 6.3 - 15.3 | |
| Input | kW | 4.19 | |
| Rated EER | 3.22 | ||
| Rated AEER | 3.06 - 3.04 | ||
| AEER/ACOP (part-load %) | 3.67 / 3.61 | ||
| Heating | Capacity (rated) | kW | 16 |
| Capacity (min. - max.) | kW | 5.7 - 18.0 | |
| Input | kW | 3.9 | |
| Rated COP | 4.1 | ||
| Rated ACOP | 3.88 / 3.86 | ||
| Air Flow (Low-[Mid]-Hi) | L/s | 50Pa: 800 - 1000; 100Pa: 716-900; 150Pa: 683-866 | |
| External Static Pressure | Pa | 50 / 100 / 150 | |
| Sound Pressure Level | dB | 45 - 45 | |
| Return air spigot size | mm | 1102 x 330 | |
| Supply air spigot size | mm | 921 x 250 | |
| Indoor - Dimensions (HxWxD) | mm | 400 x 1400 x 634 | |
| Indoor - Weight | kg | 63 | |
| Outdoor - Dimensions (HxWxD) | mm | 1388 x 1050 x 330 | |
| Outdoor - Weight | kg | 121 | |
| Electrical Supply | V / Ph / Hz | 400 / 3 / 50 | |
| Breaker Size | A | 16 | |
| Max Piping Length | m | 75 | |
| Max Piping Height | m | 30 | |
| Guaranteed Operating Range | Cooling | °C | -5 to 46 |
| Heating | °C | -20 to 21 | |
