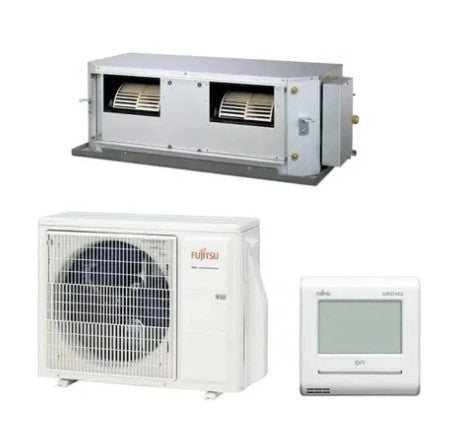

Fujitsu SET-ARTH36KHTA 10.0kW High Static Ducted System 1 Phase

by fujitsu
$3,600.00

The High Static R32 Ducted models are up to 19.7 per cent more energy efficient across the range compared to previous models. The High Static R32 ducted range features the same lightweight and compact indoor unit chassis design to enable the continuation of installation ease and flexibility.

HE ULTIMATE WAY TO MANAGE COMFORT THROUGHOUT YOUR ENTIRE HOME
You can control multiple rooms, or the entire house, using just one system
Exceptionally discreet, the system is concealed in your ceiling, offering quiet operation and seamless integration into your home’s décor
Can be operated from an easy to use LCD control
Multiple features such as DC fan motors, DC rotary compressors, zone control and programmable systems deliver high energy efficiency.


Specification :

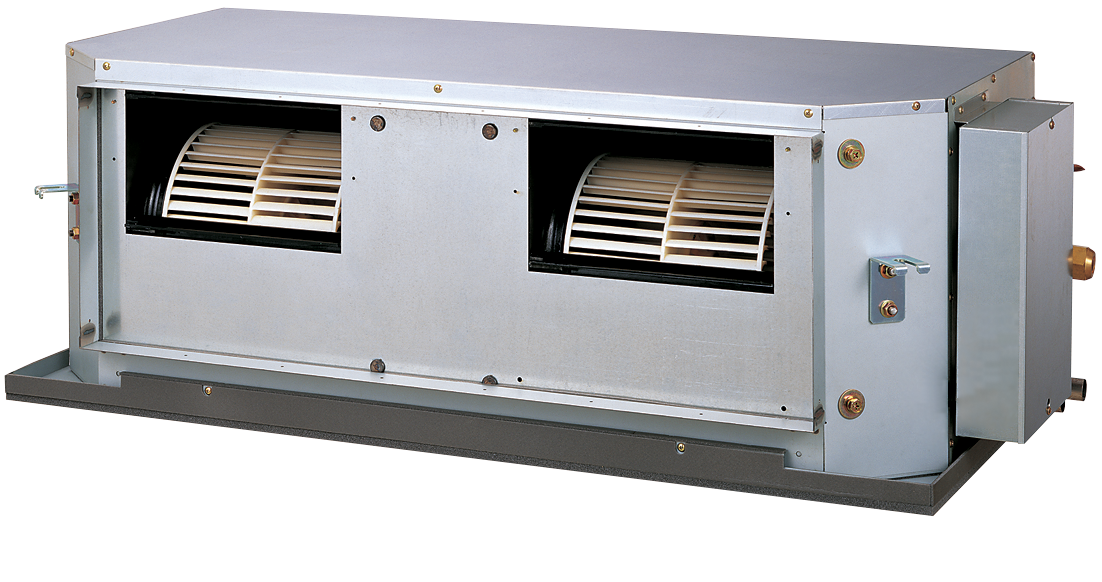

Indoor unit ARTH36KHTA

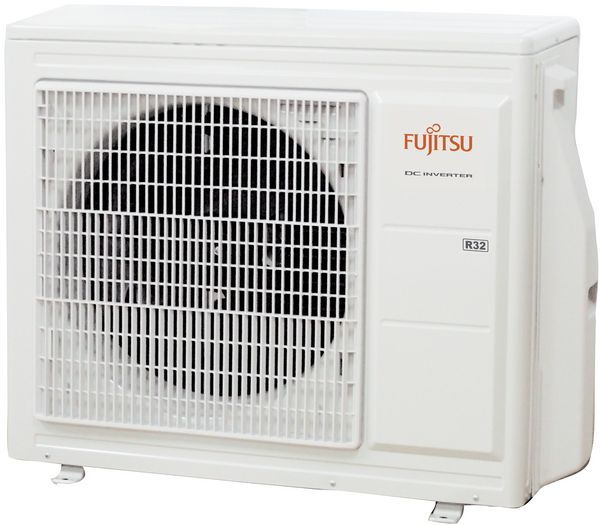

Outdoor unit AOTH36KBTA
Operation Type Reverse Cycle
Power Source
V/Ph/Hz
230 / 1 / 50
Cooling Capacity
kW (Rated (Min – Max))
10.00 (2.8 – 11.4)
Heating Capacity
kW (Rated (Min – Max))
11.20 (2.7 – 14)
Input Power Cooling
kW (Rated (Max))
3.08 (4.01)
Input Power Heating
kW (Rated (Max))
2.8 (4.21)
EER Cooling
kW/kW
3.25
COP Heating
kW/kW
4
Star Rating Cooling
(0-10) (Hot / Average / Cold)
3 / 2.5 / 3
Star Rating Heating
(0-10) (Hot / Average / Cold)
3 / 2.5 / 1.5
Total Cooling Seasonal Performance Factor Residential
kW (Hot / Average / Cold)
4.642 / 4.426 / 4.675
Heating Seasonal Performance Factor Residential
kW (Hot / Average / Cold)
4.72 / 4.073 / 3.429
Total Cooling Seasonal Performance Factor Commercial
kW (Hot / Average / Cold)
4.972 / 5.144 / 5.544
Heating Seasonal Performance Factor Commercial
kW (Hot / Average / Cold)
4.72 / 4.34 / 3.67
Running Current
amps (Cooling / Heating)
13.6 / 12.3
Moisture Removal
l/hr
1.4
Indoor Sound Pressure Cooling
dBA (High / Quiet)
41 / 36
Indoor Sound Pressure Heating
dBA (High / Quiet)
41 / 36
Outdoor Sound Pressure
dBA (Cooling / Heating)
53 / 53
Outdoor Sound Power
dBA
70
Static Pressure Range
PA (Min to Max)
60 to 210
Air Circulation (Indoor – High Fan) Cooling
l/sec
695
Air Circulation (Indoor – High Fan) Heating
l/sec
695
Indoor Unit Dimensions
mm (Height x Width x Depth)
400 x 1050 x 500
Indoor Unit Weight
kg
39.00
Outdoor Unit Dimensions
mm (Height x Width x Depth)
788 x 940 x 320
Outdoor Unit Weight
kg
52.00
Piping Connects
mm Ø (Liquid / Gas)
9.52 / 15.88
Pipe Length
m (Max (Precharged))
50 (30)
Max Height Difference
m
30
Operation Range Cooling
°CDB (Min to Max)
-10 to 50
Operation Range Heating
°CDB (Min to Max)
-15 to 24
Refrigerant Type R32
Refrigerant Amount
g
1,900
