MINI AQUA CONDENSATE PUMP 8M UP 7KW/HR
by Pipe and Fittings
$232.00
ITEM DESCRIPTION

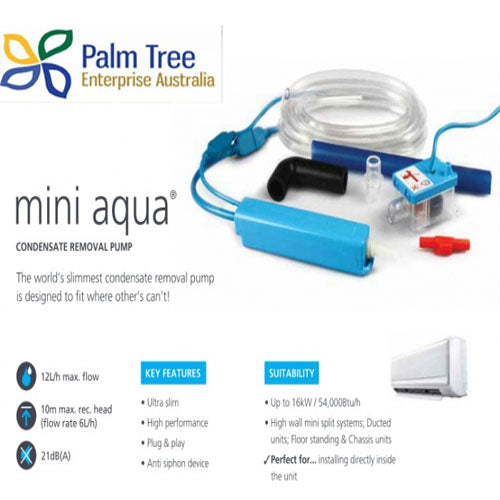

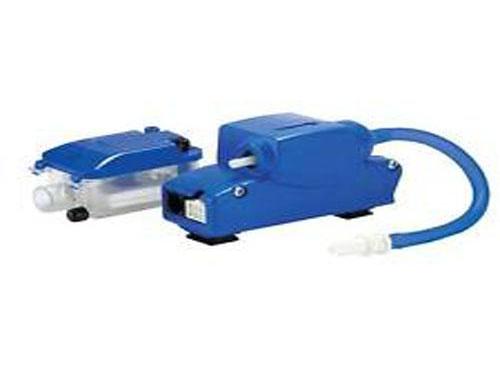

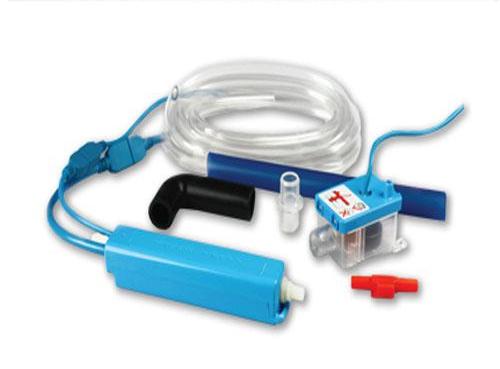

ASPEN MINI AQUA CONDENSATE PUMP 8M UP 7KW/HR REMOVES WATER FROM AC RUNOFF
Using the proven functionality of our other mini condensate pumps the NEW Mini Aqua is also
incredibly slim in size.
Measuring only 28mm in height and 28mm
in depth, it provides great installation flexibility
in even the smallest of evaporators.
The fully potted Aqua is designed to be installed
either within the wall mounted evaporator or in the
plastic conduit and will reliably pump condensation water from it's reservoir up to a height of
8 metres.(Water flow rate: 14 l/h @ zero head).
Tech Info:
- power supply: 220-240V AC < 16W
- 1PH 50/60 Hz
- 3A volt-free alarm wires, N/O N/C contacts
- non-continuously rated - operating time: 5 mins on / 5 mins off
- class I appliance
- hall effect semi conductor level sensors
- water flow rate: 14L per hr @ zero head
- maximum water temperature: 40 degrees celcius
- maximum recommended head: 8m
- sound level: 21dB(A) @ 1m and 8m head
- suction lift: 1m
- discharge tube: 6mm i/d
- CE marked
- thermally protected
- fully potted
Features
Ultra-slim profile
Self Priming
Integral hanging loop and separate
reservoir facilitates attachment in
vertical applications
3A NO/NC dry contacts rated
@ 5A inductive at 230V AC
Fully potted electronics*
Specifications
Verify Pump Capacity Here
Power Supply: 100-250 VAC
Power Consumption: .07-.13A 16W
Duty Cycle:
50% duty cycle
5 mins on / 5 mins off
Capacity:
Up to 30,000 BTU/hr.
3.2 GPH @ zero head,
0.8 GPH @ 33ft head
Maximum head: 33ft
Suction lift: 5ft
Sound level: Mini – 24dB(A)
Silent Plus – 19dB(A)
Pump Dimensions:
L-61/2” x H-11/8” x W-11/8”
KNOWN ALTERNATIVE PART NUMBERS, APPLICATIONS & SUITED MODELS
FP2406/CN, FP 2406/2
