Aspen Mini Orange Condensate Pump FP2212 – 12 L/h, 10 m Head, up to 16 kW
by Aspen Pumps
$236.50

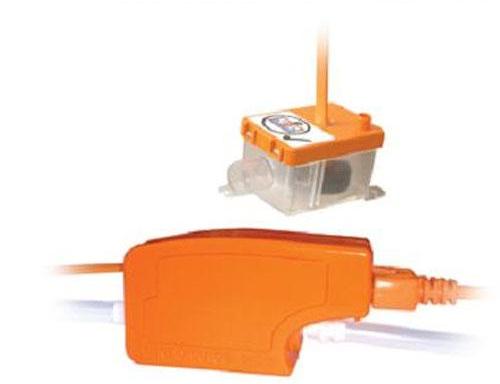

The Aspen Mini Orange (FP2212) is a compact condensate removal pump for wall-mounted split systems and other units up to 16 kW (54,000 Btu/h). The pump can be installed remotely above the ceiling or inside a lineset cover, with a pan-mount or inline reservoir.
Specifications
- Maximum flow: 12 L/h (at 0 m head)
- Maximum recommended head: 10 m
- Maximum suction lift: 2 m
- Maximum unit output: 16 kW / 54,000 Btu/h
- Sound level: 21 dB(A) at 1 m
- Power: 230 VAC, 0.11 A, 16 W
- Safety switch: 3.0 A, normally closed
- Thermal protection
- Pump weight: 0.25 kg

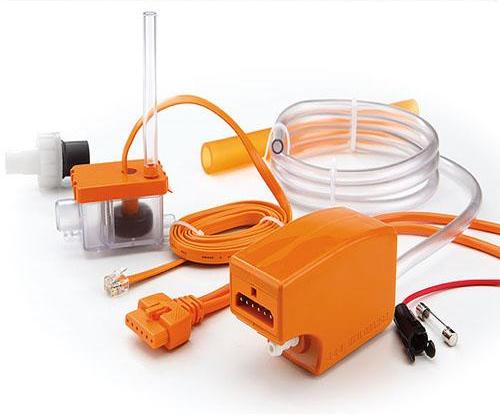

Kit contents
- Mini Orange pump
- 1.5 m plug-and-play power cable
- Reservoir and reservoir lid with 1.5 m sensor cable
- Submersible reservoir
- Anti-siphon device
- Float and filter
- 1.5 m suction tube (6 mm ID)
- 220 mm orange inlet hose (14 mm ID)
- 150 mm vinyl breather tube (6 mm ID)
- Drain connector kit and fixing kit
- Installation manual

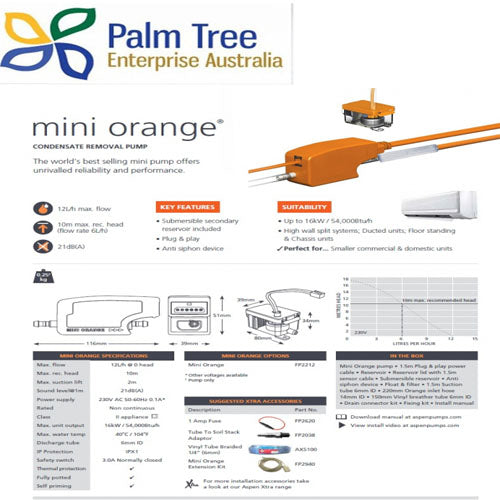

Specifications from the Aspen Pumps Mini Orange product sheet. Alternative part number: FP2212. Installation by a licensed technician.
