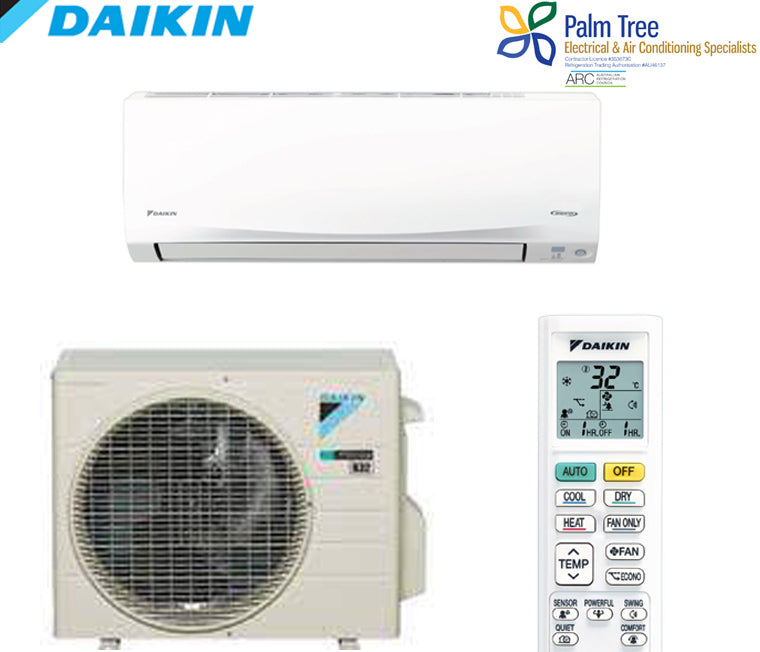

Daikin DTXF-T Series DTXF60TVMA 6.0kW Inverter Split System Supply and Install
Feature :
R32 REFRIGERANT R32 is the next generation in refrigerants with 66% lower ‘Global Warming Potential Factor’ than R410A, providing less risk of harm to the environment
WHISPER QUIET Daikin’s DTXF-T is not just compact in size but also quiet in operations, featuring an Indoor Unit Quiet mode that reduces the indoor unit operational noise level down to as much as 19dBA* to maintain room acoustics
COMPACT SIZE Utilising a range of new technologies including R32 as a refrigerant, a redesigned indoor heat exchanger with Ø5mm piping and a new large rotor cross-flow indoor fan has resulted in a more compact design for both the indoor and outdoor machines.
INTELLIGENT COMFORT Each model is fitted with Daikin’s Intelligent Eye human sensor that ensures draft free comfort and automatically enables energy saving operations when the room is unoccupied

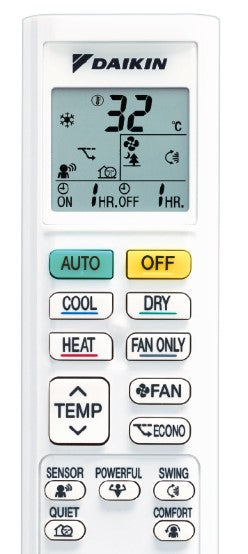

LIFESTYLE CONVENIENCE Features a simplified backlit wireless remote controller with precision temperature set point adjustment in 0.5°C increments and a built-in count up-down ON/OFF timer for convenient set and forget operations
AIR PURIFICATION Each model is fitted with titanium apatite deodorising air purification filter that traps microscopic particles, decomposes odours and even deactivates bacteria and viruses.
Specification:
| Indoor Unit | DTXF60TVMA | |
| Outdoor Unit | DRXF60TVMA | |
| Rated Capacity | Cool (kW) | 6 |
| Heat (kW) | 6.5 | |
| Capacity Range | Cool (kW) | 1.6-6.5 |
| Heat (kW) | 1.0-6.7 | |
| Indoor Airflow Rate (H) | Cool (l/s) | 313 |
| Heat (l/s) | 333 | |
| Indoor Fan Speed | 5 steps, quiet and automatic | |
| Star Rating (Hot/Avg/Cold) ZERL (Residential) | Cool | 3/2.5/3 |
| Heat | 3/2/1.5 | |
| Front Panel Colour | Pure White | |
| Power Supply | 1 phase, 220-240V, 50Hz | |
| Power Input (Rated) | Cool (kW) | 1.85 |
| Heat (kW) | 1.99 | |
| E.E.R/C.O.P | Cool/Heat | 3.24/3.27 |
| TCSPF (Residential) | Hot/Avg/Cold | 4.73/4.42/4.64 |
| HSPF (Residential) | Hot/Avg/Cold | 4.70/3.93/3.34 |
| A.E.E.R/A.C.O.P | Cool/Heat | 3.22/3.24 |
| Dimensions (HxWxD) | Indoor (mm) | 295x990x263 |
| Outdoor (mm) | 595x845x300 | |
| Weight | Indoor (kg) | 12 |
| Outdoor (kg) | 41 | |
| Compressor Type | Hermetically Sealed Swing Type | |
| Refrigerant Type | R32 | |
| Max Pipe Length | (m) | 30 |
| Max Level Difference | (m) | 20 |
| Pipe Sizes | Liquid (mm) | 6.4 |
| Gas (mm) | 12.7 | |
| Outdoor Operating Range | Cool (°CDB) | |
| Heat (°CWB) | ||
| Indoor Sound Level (H/SL) | Cool (dBA) | 46/29 |
| Heat (dBA) | 46/29 | |
| Outdoor Sound Level (H/SL) | Cool (dBA) | 49/46 |
| Heat (dBA) | 51/47 | |
| Outdoor EPA Sound Power Level (H) | Cool (dBA) | 61 |
| Heat (dBA) | 63 |
