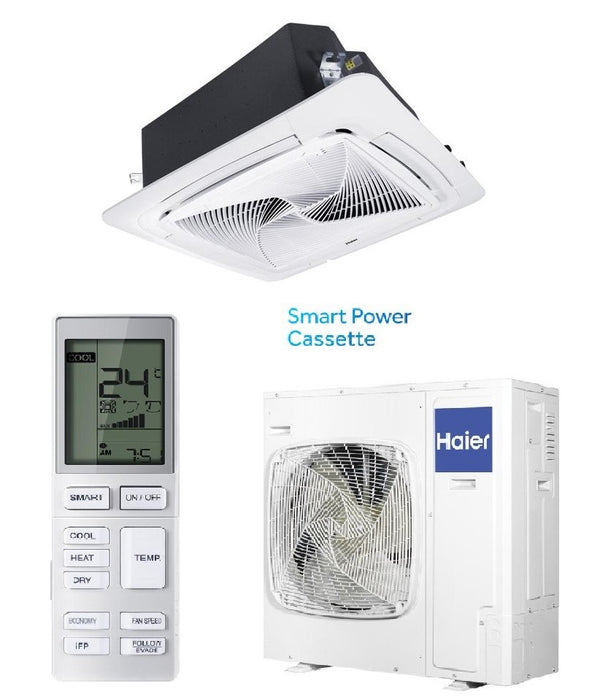

Haier Round Way Cassette ABH090H1ERG 9.0kW 1 Phase Air Conditioner
by Haier
$3,100.00
Key Features:
Cooling Capacity kW
5 Year Parts and Labour Warranty
Heating Capacity kW
Wi-Fi option available
Round Way Airflow
Specification :

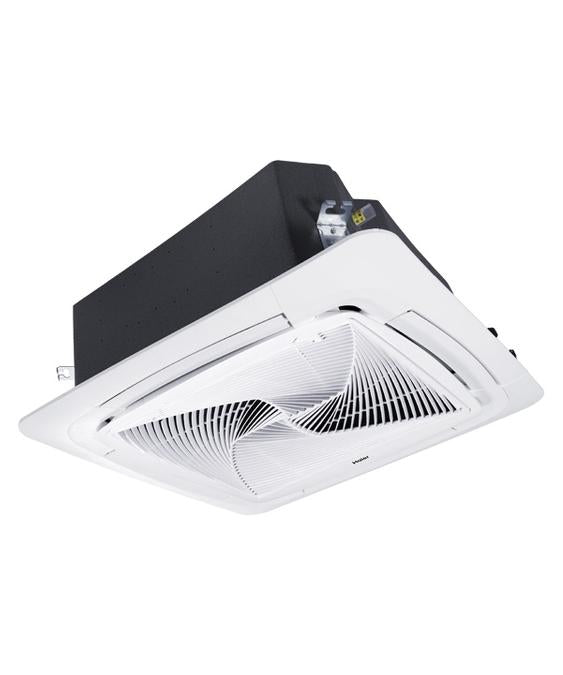

| Indoor Unit | ABH090H1ERG | |||
| Outdoor Unit | 1UH090N1ERG | |||
| Nominal Performance Data | Nominal Capacity | Cooling (Min - Max) | kW | 9.0 (2.5 - 10) |
| Heating (Min - Max) | kW | 10.1 (2.5 - 11) | ||
| Rated Power Input | Cooling (Min - Max) | kW | 2.56 (0.5 - 3.5) | |
| Heating (Min - Max) | kW | 2.69 (0.5 - 3.5) | ||
| EER | W / W | 3.52 | ||
| COP | W / W | 3.75 | ||
| Star Rating | Cooling / Heating | Stars | 2 / 2.5 | |
| Indoor Unit | Power Supply | Ph / V / Hz | 1 / 220 - 240 / 50/60 | |
| Air Flow | (H/M/L) | L / s | 405 / 350 / 290 / 260 | |
| Sound Power Level | (H/M/L) | dB(A) | 57 | |
| Sound Pressure Level | (H/M/L) | dB(A) | 41 / 36 / 33 / 29 | |
| External Dimensions | mm | 840 x 840 x 246 | ||
| Shipping Dimensions | mm | 990 x 990 x 310 | ||
| Net Weight | kg | 31 | ||
| Shipping Weight | kg | 36 | ||

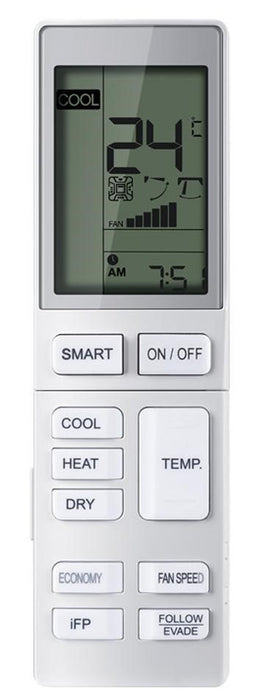

| Wireless Controller | Optional | YR-HBS | ||
| Wired Controller | Optional | YR-E17 / YR-E16A | ||

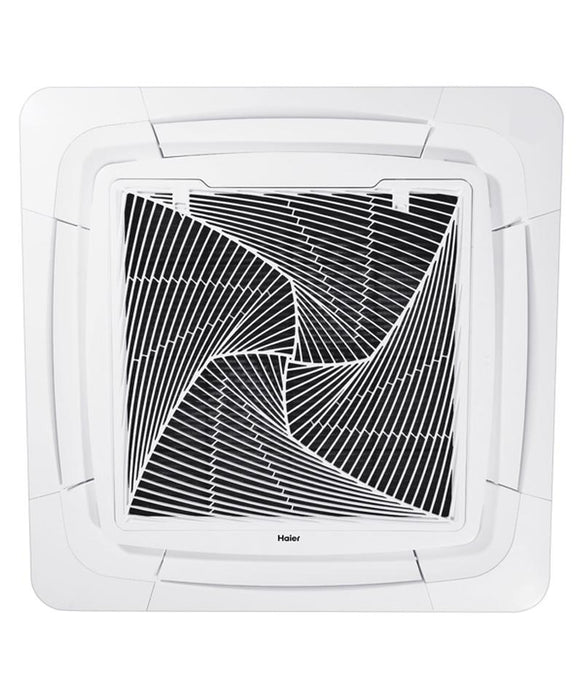

| Panel | Model | PB-950KB (Standard Panel) PB-950MB (Sensor Panel) | ||
| External Dimensions | mm | 950 x 950 x 50 | ||
| Shipping Dimensions | mm | 1000 x 1000 x 110 | ||
| Net Weight | kg | 6.5 | ||
| Shipping Weight | kg | 9 | ||

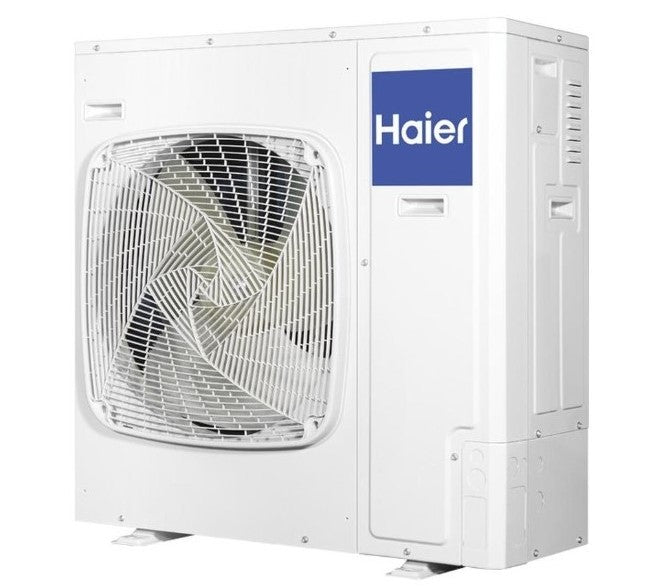

| Outdoor Unit | Power Supply | Ph / V / Hz | 1 / 220 - 240 / 50/60 | |
| Rated Current | Cooling | A | 11.6 | |
| Heating | A | 11.9 | ||
| Maximum Current | A | 16 | ||
| Air Flow (H) | L / s | 970 | ||
| Sound Power Level | dB(A) | 66 | ||
| Sound Pressure Level | dB(A) | 50 | ||
| External Dimensions | mm | 965 x 950 x 370 | ||
| Shipping Dimensions | mm | 1095 x 1050 x 450 | ||
| Net Weight | kg | 80 | ||
| Shipping Weight | kg | 92 | ||
| Compressor Type | Rotary | |||
| Refrigerant Type | R410a | |||
| Refrigerant Liquid Pipe | mm | ø9.52 | ||
| Refrigerant Gas Pipe | mm | ø15.88 | ||
| Max Pipe Length | m | 50 | ||
| Max Drop between I.U. & O.U. | m | 30 | ||
| Refrigerant pre-charged | kg | 2.5 | ||
| Pre-charge line length | m | 20 | ||
| Additional Gas Charge | g / m | 45 | ||
| Operating Range | Cooling (Min - Max) | °C | -15 to 50 | |
| Heating (Min - Max) | °C | -20 to 24 | ||
