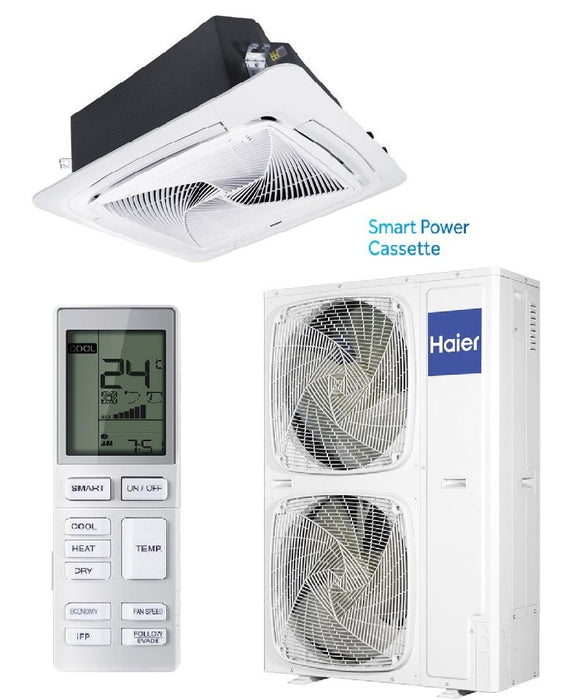

Haier Round Way Cassette ABH125H1ERG 12.5kW 1 Phase Air Conditioner

by Haier
$3,960.00
Key Features:

Cooling Capacity kW
5 Year Parts and Labour Warranty
Heating Capacity kW
Wi-Fi option available
Round Way Airflow

    Specification :

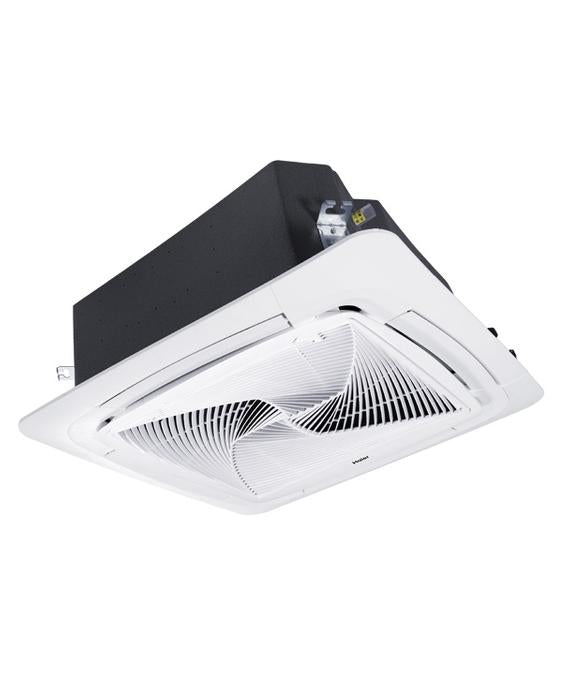

    Indoor Unit ABH125K1ERG
    Outdoor Unit 1UH125P1ERG
    Nominal Performance Data Nominal Capacity Cooling (Min - Max) kW 12.5 (3.5 - 14.5)
    Heating (Min - Max) kW 13.1 (4.0 - 17.0)
    Rated Power Input Cooling (Min - Max) kW 3.67 (1.0 - 6.0)
    Heating (Min - Max) kW 3.71 (1.0 - 6.0)
    EER W / W 3.41
    COP W / W 3.53
    Star Rating Cooling / Heating Stars 2 / 2
    Indoor Unit Power Supply Ph / V / Hz 1 / 220 - 240 / 50/60
    Air Flow (H/M/L) L / s 540 / 440 / 400 / 330
    Sound Power Level (H/M/L) dB(A) 64
    Sound Pressure Level (H/M/L) dB(A) 47 / 44 / 38 / 34
    External Dimensions mm 840 x 840 x 288
    Shipping Dimensions mm 990 x 990 x 380
    Net Weight kg 32
    Shipping Weight kg 38

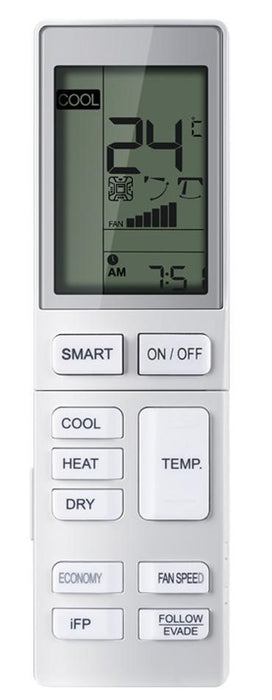

    Wireless Controller Optional YR-HBS
    Wired Controller Optional YR-E17 / YR-E16A

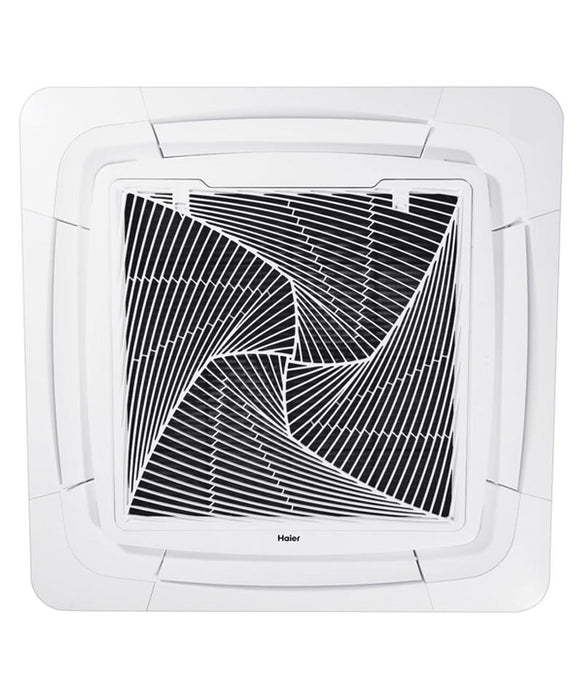

    Panel Model   PB-950KB (Standard Panel) PB-950MB (Sensor Panel)
    External Dimensions mm 950 x 950 x 50
    Shipping Dimensions mm 1000 x 1000 x 110
    Net Weight kg 6.5
    Shipping Weight kg 9

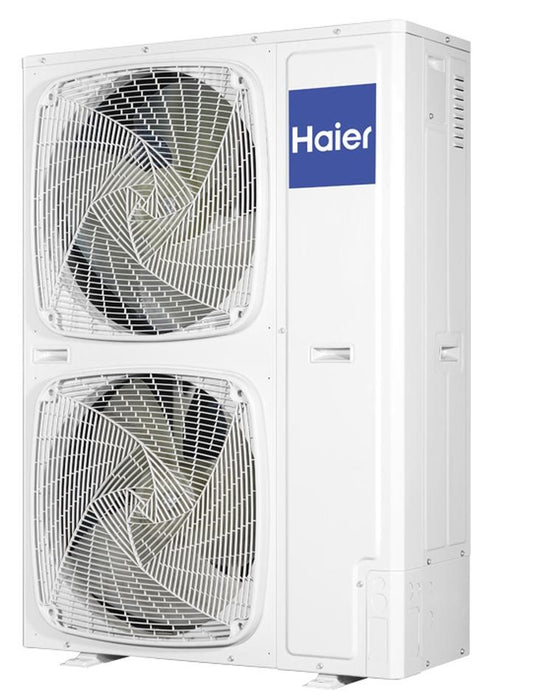

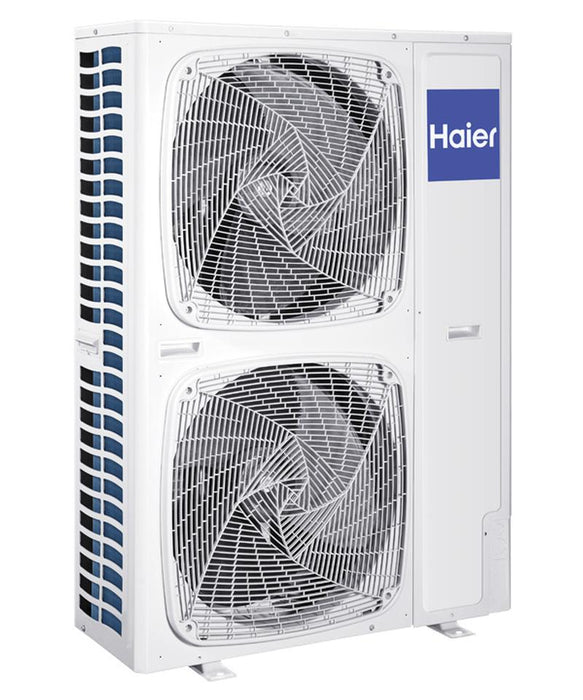

    Outdoor Unit Power Supply Ph / V / Hz 1 / 220 - 240 / 50/60
    Rated Current Cooling A 17
    Heating A 17.2
    Maximum Current A 30
    Air Flow (H) L / s 1805
    Sound Power Level dB(A) 69
    Sound Pressure Level dB(A) 52
    External Dimensions mm 1350 x 950 x 370
    Shipping Dimensions mm 1500 x 480 x 1090
    Net Weight kg 108
    Shipping Weight kg 121
    Compressor Type   Rotary
    Refrigerant Type   R410a
    Refrigerant Liquid Pipe mm ø9.52
    Refrigerant Gas Pipe mm ø15.88
    Max Pipe Length m 75
    Max Drop between I.U. & O.U. m 30
    Refrigerant pre-charged kg 3.7
    Pre-charge line length m 30
    Additional Gas Charge g / m 45
    Operating Range Cooling (Min - Max) °C -15 to 50
    Heating (Min - Max) °C -20 to 24
