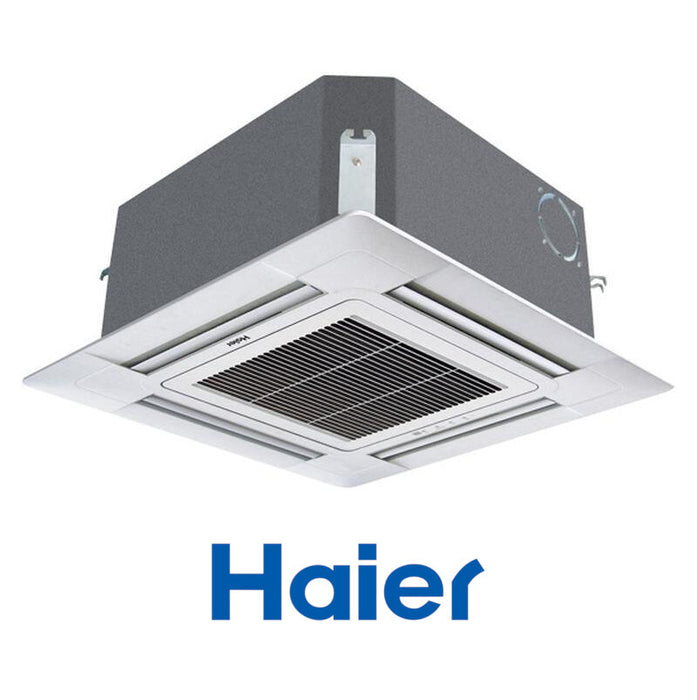

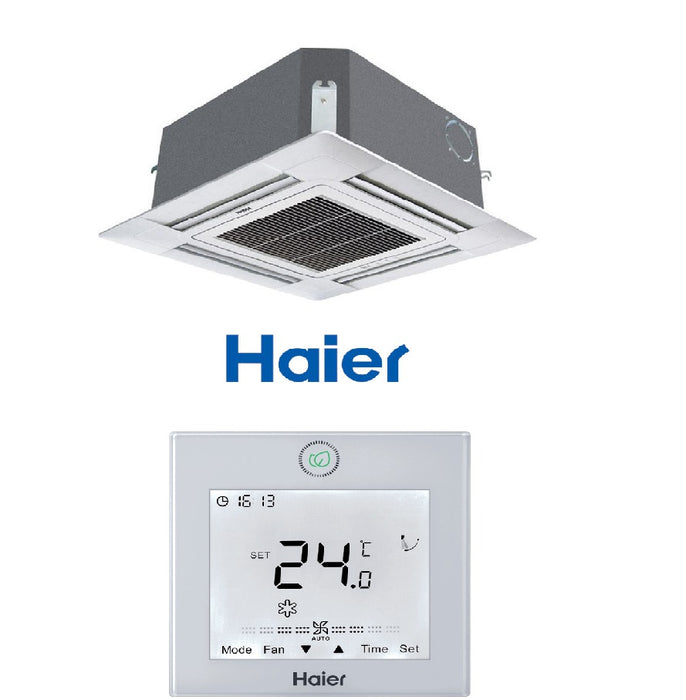

Haier Cassette AB12CS2ERA 3.5kW 1 Phase indoor only
by Haier
$748.00
Haier Super Match systems offer interchangeable indoor units. Connect one indoor unit or up to five (¹) with 1,000 possible indoor combinations. (¹) Model dependant.
Features:
- Easy Wiring
- Wider Range of Operation
- Service Screen
Specification :
| Indoor Unit | AB12CS2ERA | |||
| Capacity Electrical | Nominal Capacity | Cooling (Min - Max) | kW | 3.5 |
| Heating (Min - Max) | kW | 3.7 | ||
| Performance | Power Supply | Ph / V / Hz | 1 / 220 - 230 / 50/60 | |
| Air Flow | (H/M/L) | m3/h | 700 / 620 / 520 / 450 / 350 | |
| (H/M/L) | L / s | 194 / 172 / 144 / 125 / 97 | ||
| Sound Power Level | (H/M/L) | dB(A) | 52 | |
| Sound Pressure Level | (H/M/L) | dB(A) | 42 / 40 / 36 / 32 / 28 | |
| Installation | External Dimensions | mm | 570 x 570 x 260 | |
| Shipping Dimensions | mm | 718 x 680 x 380 | ||
| Net Weight | kg | 18.5 | ||
| Shipping Weight | kg | 22 | ||
| Refrigerant Liquid Pipe | mm | 6.35 | ||
| Refrigerant Gas Pipe | mm | 9.52 | ||

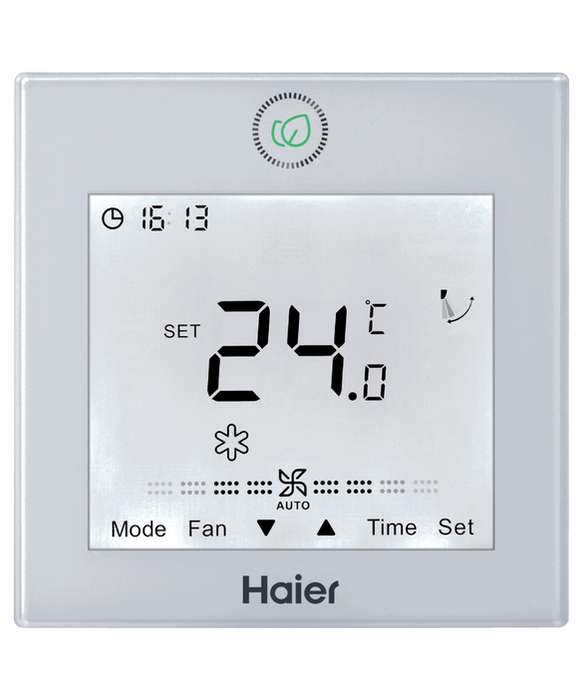

| Controller | Standard | YR-E17 | ||
| Optional | YR-E16a / YR-HD | |||
| Wi-Fi | KZW-W001 | |||
| Panel | Model | PB-700IB | ||
| External dimensions (W x D x H) | mm | 700/700/60 | ||
| Shipping dimensions (W x D x H) | mm | 740/750/115 | ||
| Net/Shipping Weight | kg | 2.8/4.8 | ||
