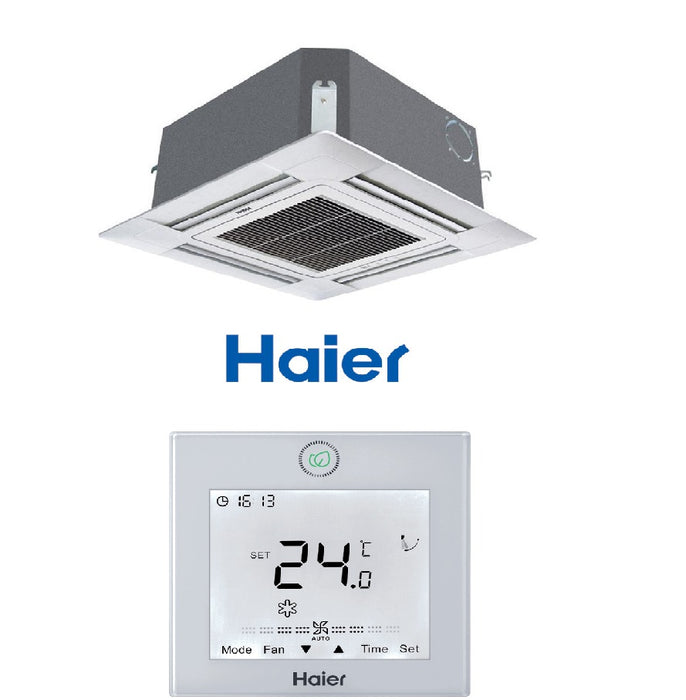

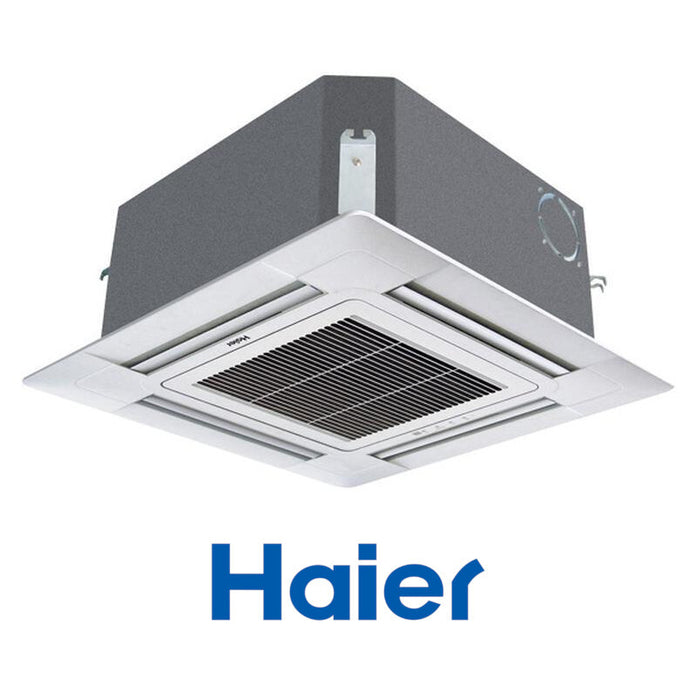

Haier Cassette AB24ES1ERA 7.1kW 1 Phase indoor only
by Haier
$930.00
Haier Super Match systems offer interchangeable indoor units. Connect one indoor unit or up to five (¹) with 1,000 possible indoor combinations. (¹) Model dependant.
Features:
- Easy Wiring
- Wider Range of Operation
- Service Screen
Specification :
| Indoor Unit | AB24ES1ERA | |||
| Capacity Electrical | Nominal Capacity | Cooling (Min - Max) | kW | 7.1 |
| Heating (Min - Max) | kW | 7.1 | ||
| Performance | Power Supply | Ph / V / Hz | 1 / 220 - 230 / 50 / 60 | |
| Air Flow | (H/M/L) | m3/h | 1300 / 1100 / 870 | |
| (H/M/L) | L / s | 361 / 305 / 241 | ||
| Sound Power Level | (H/M/L) | dB(A) | 59 / 57 / 52 | |
| Sound Pressure Level | (H/M/L) | dB(A) | 46 / 44 / 39 | |
| Installation | External Dimensions | mm | 840 x 840 x 240 | |
| Shipping Dimensions | mm | 930 x 930 x 330 | ||
| Net Weight | kg | 25.5 | ||
| Shipping Weight | kg | 30.5 | ||
| Refrigerant Liquid Pipe | mm | 9.52 | ||
| Refrigerant Gas Pipe | mm | 15.88 | ||

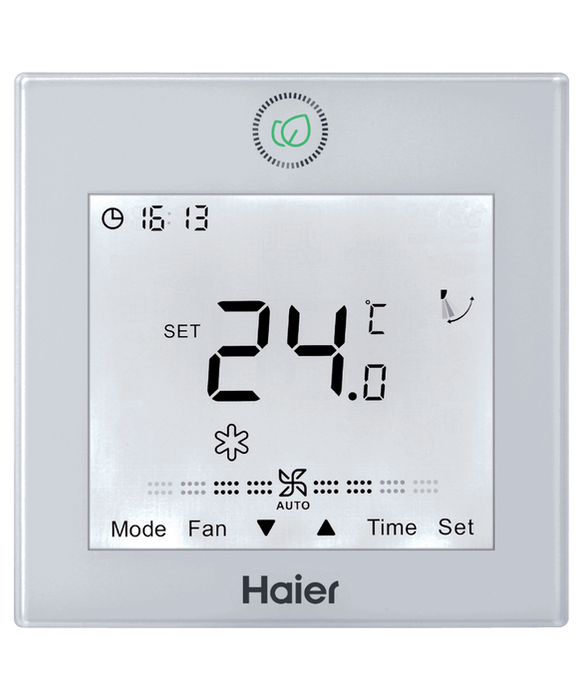

| Controller | Standard | YR-E17 | ||
| Optional | YR-E16a / YR-HD | |||
| Wi-Fi | KZW-W001 & YCJ-A002 | |||
| Panel | Model | PB-950JB | ||
| External dimensions (W x D x H) | mm | 950/950/60 | ||
| Shipping dimensions (W x D x H) | mm | 985/985/115 | ||
| Net/Shipping Weight | kg | 6.0/7.5 | ||
