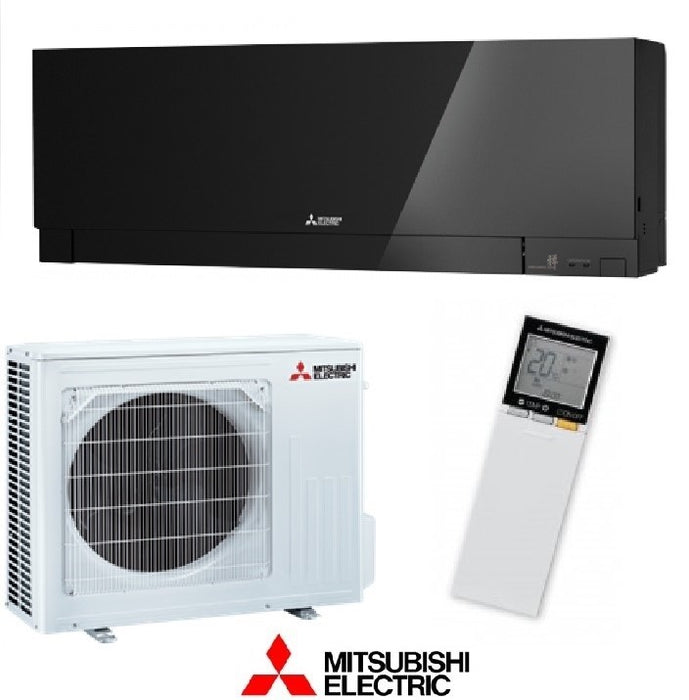

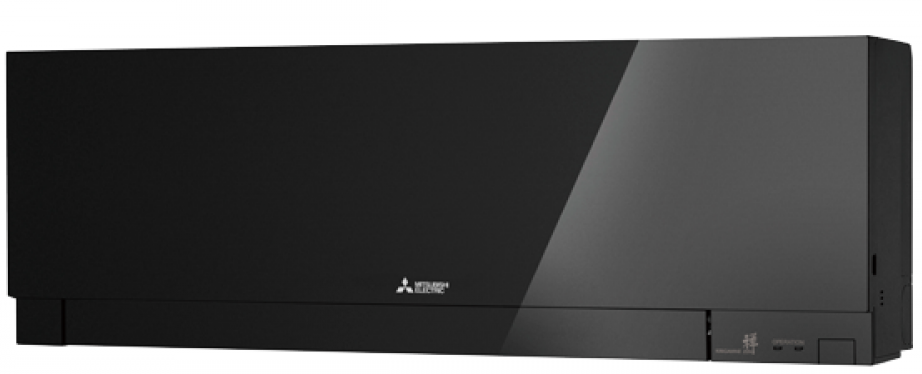

Mitsubishi EF Series Black MSZEF50VGBKIT 5.0kW Split System
by Mitsubishi Electric
$1,690.00
Mitsubishi Electric introduces the R32 MSZ-EF Series, expanding our line-up in the low Global Warming Potential (GWP) refrigerant. With just one third of the GWP of the R410A we aim to help reduce the household carbon footprint. The streamlined wall mounted indoor units have contemporary clean lines, expressing sophistication and quality, and is available in 3 stylish colours.
The Mitsubishi Electric Designer Series has been awarded the iF Product Design award for its simple and elegant design. The clean, flat surfaces and bevelled edges allow it to blend in discretely with modern interiors.
Specification :
| Model Name | MSZ-EF50VGW/B/S | |||
| Indoor Unit | MSZ-EF50VGW/B/S | |||
| Outdoor Unit | MUZ-EF50VG | |||
| Power Supply | V / Ø / Hz | 230 / 1 / 50 | ||
| Cooling | Capacity [Min - Rated - Max] | kW | 1.4 - 5.0 - 5.4 | |
| Total Input [Min - Rated - Max] | kW | 0.300 - 1.550 - 1.980 | ||
| AEER/EER | 3.23 / 3.22 | |||
| Star Rating | 1.5 | |||
| Running Current [Rated] | A | 6.9 | ||
| Sound Pressure Level | In [Lo - Mid - Hi - SHi] | dB(A) | 30 - 43 | |
| OUT(PWL) | dB(A) | - | ||
| Air Volume (In) [Lo-SHi] | L/s | 97 - 188 | ||
| Heating | Capacity [Min - Rated - Max] | kW | 1.6 - 5.8 - 7.5 | |
| Total Input [Min - Rated - Max] | kW | 0.30 - 1.56 - 2.64 | ||
| ACOP/COP | 3.71 / 3.72 | |||
| Star Rating | 2.5 | |||
| Running Current [Rated] | A | 7.1 | ||
| Sound Pressure Level | In [Lo - Mid - Hi - SHi] | dB(A) | 30 - 49 | |
| OUT(PWL) | dB(A) | - | ||
| Air Volume (In) [Lo-SHi] | L/s | 107 - 243 | ||
| Refrigerant Type | R32 | |||
| Indoor Unit | Input [Rated] Cooling / Heating | W | 18 / 34 | |
| Dimensions [HxWxD] | mm | 299 x 895 x 195 | ||
| Weight | kg | 11.5 | ||
| Outdoor Unit | Dimensions [HxWxD] | mm | 714 x 800 x 285 | |
| Weight | kg | 40 | ||
| Breaker Size | A | 16 | ||
| External Piping | Diameter (Gas/Liquid) | mm | 12.7 / 6.35 | |
| Max. Length/Height | m | 30 / 15 | ||
| Guaranteed Operating Range [Outdoor] | Cooling | °C | -10 to 46 | |
| Heating | °C | -15 to 24 | ||
