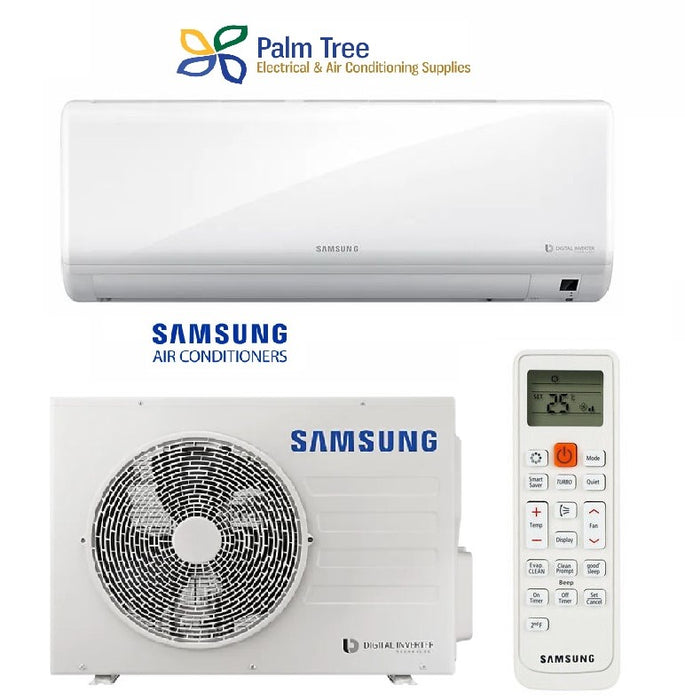

Samsung Boracay AR12KSFTAWQNSA 3.5KW Inverter Split System

by Samsung
$950.00

Features :

Turbo Mode:
Turbo Mode operates the Air Conditioner unit at its maximum speed so it quickly reaches the set temperature

Fan Mode:
Helps circulate air around the room without using the cooling/heating functions.

Quiet Mode:
Noise levels can be reduced when that extra quiet time is needed.

Good Sleep Mode:
Good sleep mode automatically adjusts the air flow direction and fan speed to help provide a comfortable environment while you sleep, at a pre-set temperature and operating time set by you.

Keeping the unit fresh:
When the Air Conditioner unit is turned off, the Auto Clean function automatically runs the fan on low speed for a period of time to dry off moisture within the heat exchanger of the indoor unit, keeping it dry to minimize the growth of bacteria.

                     Keeping the unit fresh

Auto mode:
Designed to automatically select the Operating mode based on surrounding temperature. This allows the Air Conditioner to heat or coo as required to maintain set temperature.

Demand Response Enabled Device (D.R.E.D):
D.R.E.D allows certain energy providers to limit your power consumption during peak demand times to help reduce power strain on the electricity network. Participation may entitle you for rebates from your energy provider. Please contact your energy provider to find out if it recognises D.R.E.D. and for further details. All Samsung hiwall split systems enable D.R.E.D. with the option of DRM1, DRM2, and DRM3 levels.

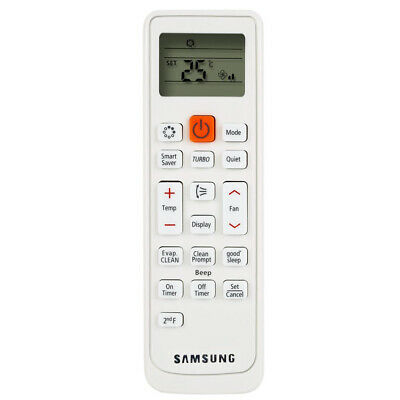

Controller features

  • Weekly timer
  • ON/OFF Command
  • Turbo mode
  • Easy to use
  • Quiet function
  • Reduces humidity
  • Temperature display

Specification:

System Model Code F-AR12KSFTAWQ1

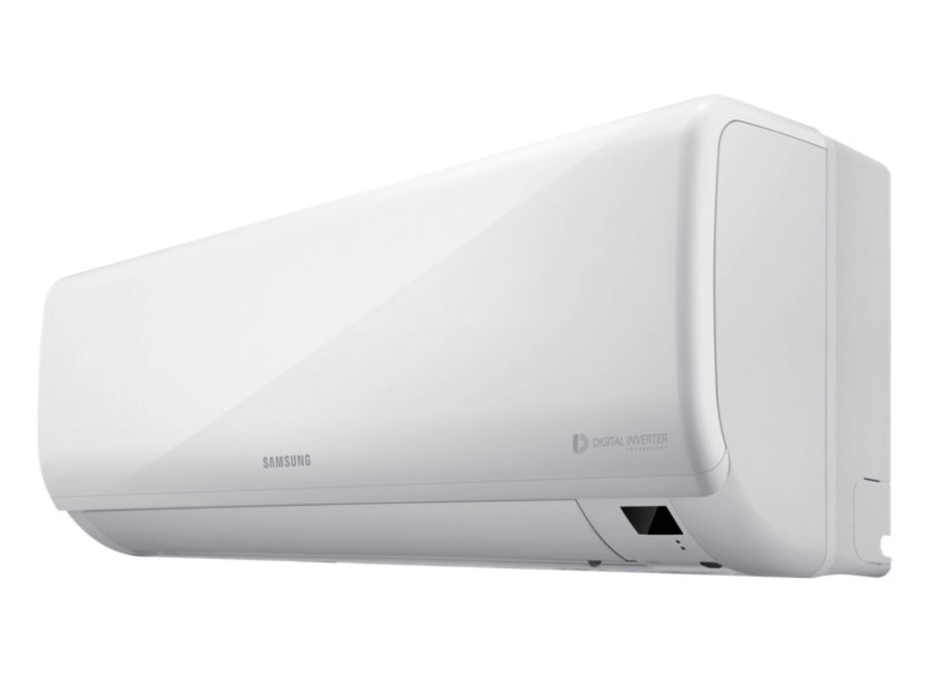

Indoor unit model code AR12KSFTAWQNSA

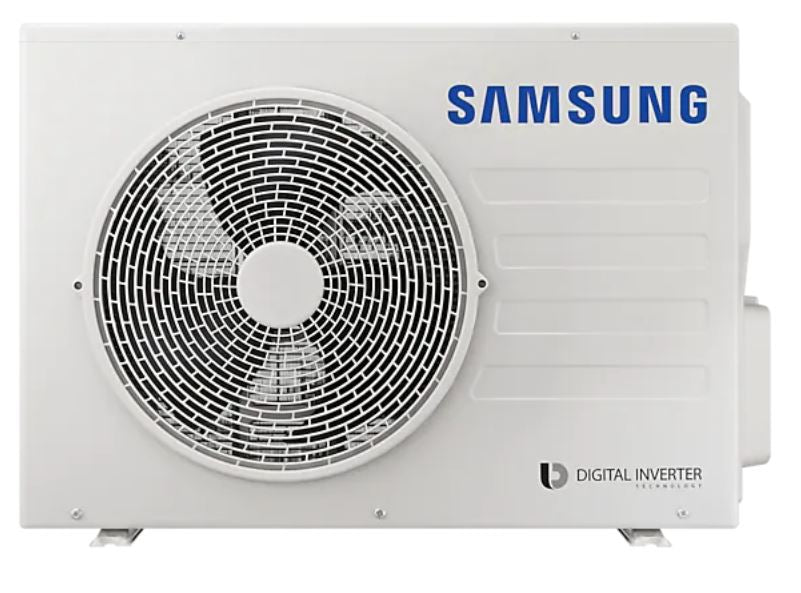

Outdoor unit model code AR12KSFTAWQXSA
Performance
Capacity Cooling Nominal 3.5
(Min-Max) 1.40 4.00
Heating Nominal 4.0
(Min-Max) 1.10 5.20
Energy Efficiency Rating AEER/ACOP AEER(W/W) 3.70
ACOP(W/W) 3.83
Star Rating Cooling Stars 2.5
Heating Stars 3.0
Air Flow Rate Indoor High(L/s) 225
Moisture Removal Indoor (L/hr) 1.2
Sound Presssure Indoor High/Low dB(A) 29/21
Outdoor High dB(A) 48
Electrical Data
Power Source V/Hz/Phase 220-240V, 50Hz, 1 Phase (Power to outdoor unit)
Operating Current Cooling (Normal) Amps 4.4
Heating (Normal) Amps 4.8
Power Input (Nominal) Cooling (Normal) W 940
Heating (Normal) W 1040
Power Source V/Hz/∅ 220~240/50/1
Physical Specifications
Dimension (mm) Indoor (W x H x D) mm 890 x 285 x 213
Outdoor (W x H x D) mm 790 x 548 x 285
Unit weight (Kg) Indoor Kg 9.2
Outdoor Kg 31
Technical Information
Pipe Length (Min) m 3
Length (Max) m 15
Height (Max) m 8
Connection sizes (mm,inch) Suction mm, inch ∅9.52, 3/8″
Liquid mm, inch ∅6.35, 1/4″
Refrigerant Type R410A
Precharge length m 5
Operating temperature range Cooling -10 to 46℃
Heating -15 to 24℃
