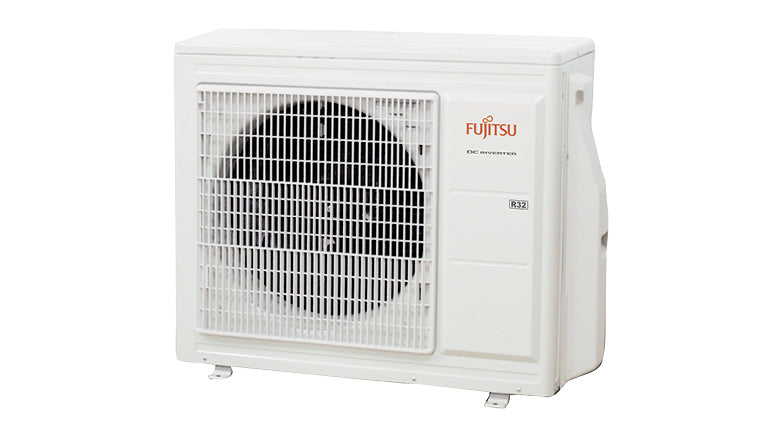

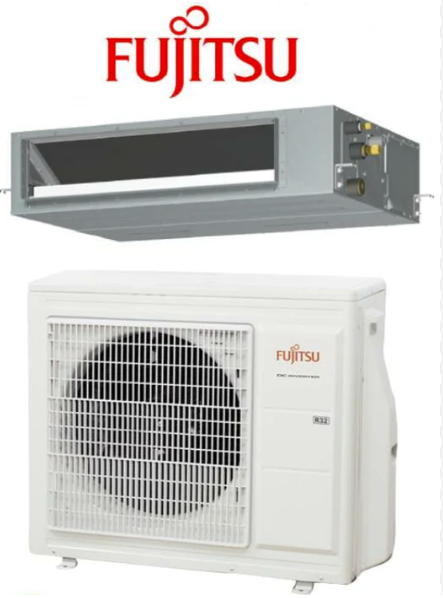

FUJITSU ARTH36KMTAP 10kW Inverter Ducted System Mid Static Slimline 1 Phase
by Fujitsu
$3,900.00
The Fujitsu General Mid Static Slimline R32 models are designed with a narrow 240mm high chassis and a built-in drain pump, giving flexibility for the system to be installed in tighter bulkhead and ceiling applications.
Specification :
| Indoor unit | ARTH36KMTAP |
| Outdoor unit | AOTH36KBTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 240 / 1 / 50 |
| Cooling Capacity kW (Rated (Min – Max)) | 10.00 (2.8 – 11.4) |
| Heating Capacity kW (Rated (Min – Max)) | 11.20 (2.7 – 14) |
| Input Power Cooling kW (Rated (Max)) | 3.23 (4.3) |
| Input Power Heating kW (Rated (Max)) | 3.3 (4.5) |
| EER Cooling kW/kW | 3.1914 |
| COP Heating kW/kW | 3.7299 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 2.5 / 2.5 / 2.5 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 3 / 2 / 1.5 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.338 / 4.141 / 4.359 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.568 / 3.815 / 3.201 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.635 / 4.781 / 5.14 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.583 / 4.139 / 3.467 |
| Running Current amps (Cooling / Heating) | 13.6 / 13.9 |
| Moisture Removal l/hr | 2.9 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 38 / 27 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 38 / 27 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 53 / 53 |
| Outdoor Sound Power dBA | 70 |
| Static Pressure Range PA (Min to Max) | 50 to 150 |
| Air Circulation (Indoor – High Fan) Cooling l/sec | 575 |
| Air Circulation (Indoor – High Fan) Heating l/sec | 575 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 240 x 1400 x 700 |
| Indoor Unit Weight kg | 42.00 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 788 x 940 x 320 |
| Outdoor Unit Weight kg | 52.00 |
| Piping Connects mm Ø (Liquid / Gas) | 9.52 / 15.88 |
| Pipe Length m (Max (Precharged)) | 50 (30) |
| Max Height Difference m | 30 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 1,900 |
