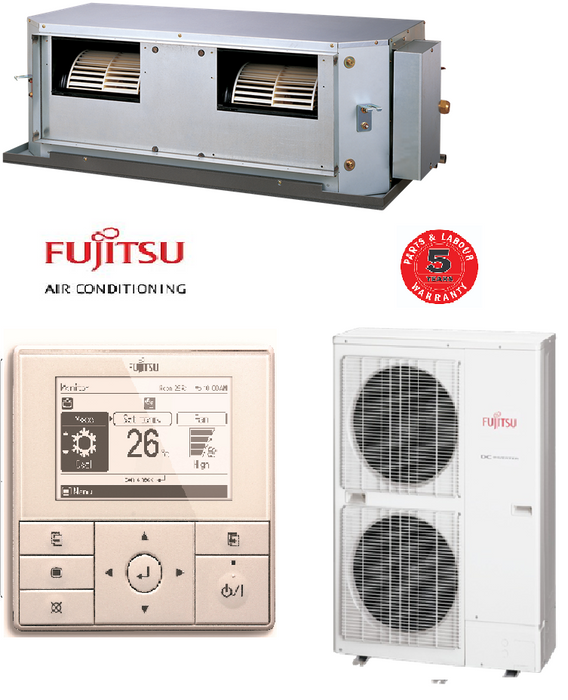

Fujitsu ARTG36LHTB 10.5kW 3 Phase high static Ducted Inverter Air Conditioner

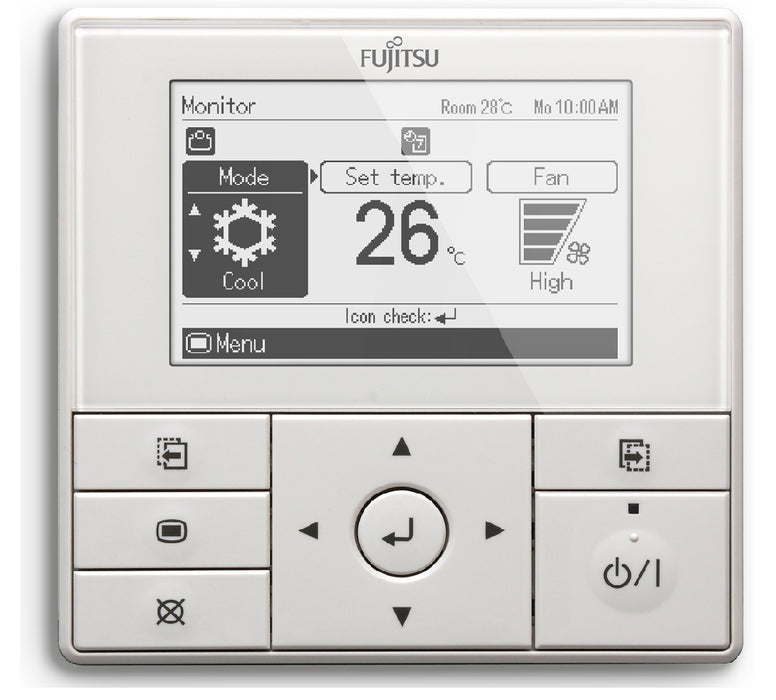

Ducted air conditioning is surely the ultimate in comfort. The Fujitsu ducted models offer quiet, efficient operation, are easy to maintain, and operated via a wall mounted LCD control that controls all functions of the system.
Features:
Optional zone control allowing for 8 zones to be connected, giving greater temperature control to meet individual needs.
With built in features such as DC fan motors, DC rotary compressors, and built in programmable timers, these systems use less power than ever before.
Fujitsu General offers a full five year parts and labour warranty on its entire range, so you can rest assured that your air conditioner will perform.
Specification :
|

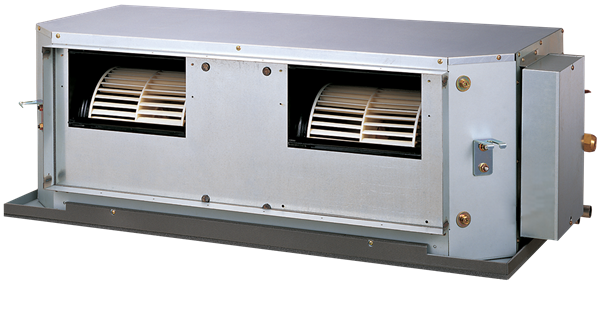

Model No. - Indoor |
ARTG36LHTB |
|

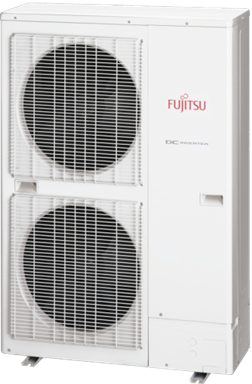

Model No. - Outdoor |
AOTG36LATT |
|
Reverse Cycle System |
Yes |
|
Capacity Class |
|
|
Cooling Capacity (Watts) |
10,500 |
|
Cooling Capacity (BTU/h) |
35,800 |
|
Range (Watts) |
5,000 - 11,400 |
|
Range (BTU/h) |
17,100 - 38,900 |
|
Heating Capacity (Watts) |
12,100 |
|
Heating Capacity (BTU/h) |
41,300 |
|
Range (Watts) |
5,100 - 14,000 |
|
Range (BTU/h) |
17,400 - 47,800 |
|
Power Supply (Volts) |
415 |
|
Phase-Frequency (Ph - Hz) |
3 - 50 |
|
Power Supply Attachment |
Outdoor |
|
Plug Size (If Applicable) |
N/A |
|
Running Current, Cooling (Amps) |
4.6 |
|
Running Current, Range (Amps) |
Max 9.0 |
|
Input, Cooling (Watts) |
3,180 |
|
Input, Range (Watts) |
Max 5,630 |
|
Running Current, Heating (Amps) |
4.8 |
|
Running Current, Range (Amps) |
Max 9.0 |
|
Input, Heating (Watts) |
3,300 |
|
Input, Range (Watts) |
Max 5,630 |
|
Input (Watts) |
|
|
Moisture Removal (l/hr) |
1.5 |
|
E.E.R. - Cooling |
3.3 |
|
C.O.P. - Heating |
3.67 |
|
Star Rating - Cooling |
|
|
Star Rating - Heating |
|
|
Fan Speed |
4 |
|
Air Circulation, High (l/s) |
695 |
|
Compressor Type |
DC Rotary |
|
Dimensions - Inside Unit (HxWxD mm) |
400 x 1,050 x 500 |
|
Weight - Inside Unit (kg) |
39 |
|
Dimensions - Outside Unit (HxWxD mm) |
1,290 x 900 x 330 |
|
Weight - Outside Unit (kg) |
104 |
|
I.U. Sound Pressure Level (dBA@1mtr) |
41 |
|
O.U. Sound Pressure Level (dBA@1mtr) |
51 |
|
O.U. Sound Power Level (dBA) |
67 |
|
Refrigerant Type |
R410A |
|
Connection Pipe Sizes, Gas (mm) |
15.88 |
|
Connection Pipe Sizes, Liquid (mm) |
9.52 |
|
Pre Charged Length (Metre) |
30 |
|
Minimum Pipe Length (Metre) |
5 |
|
Maximum Pipe Length (Metre) |
75 |
|
Maximum Pipe Height (Metre) |
30 |
|
Pipe Connection Methods |
Flare |
|
Outdoor operating Temp, Cooling Degrees C |
-15 to 46 |
|
Outdoor operating Temp, Heating Degrees C |
-15 to 24 |
