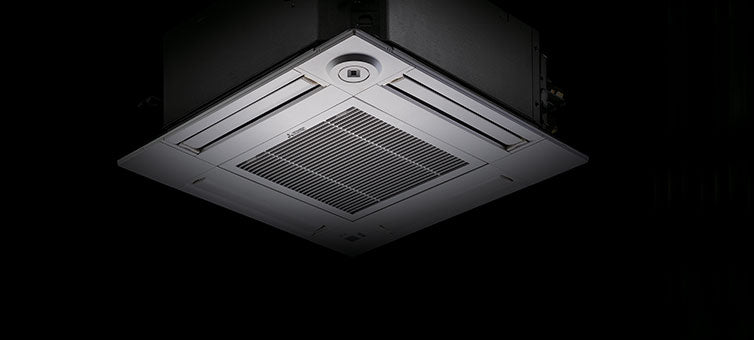

Mitsubishi Compact Cassette 3.5kW SLZ-M35FA

by Mitsubishi Electric
$1,850.00

Classic Cassette Heat Pumps

Compact, ultra-quiet and packed with advanced features, our range of concealed ceiling cassettes offer the ultimate in comfort and control; equipped with i-See Sensor technology, four-way and horizontal airflow, and a sleek, award-winning design. Its low energy consumption, four way air distribution and versatile control make it ideal if you are looking to heat a smaller room or office space. Take control of air distribution and energy saving modes automatically by utilising the i-see sensor. Upgraded with a Deluxe PAR Wired Controller, with backlit LCD display and user-friendly menus, you are able to precisely control power consumption and set temperatures, setting up to eight patterns per day.

Features of This Series :

3D i-see Sensor

The i-see Sensor detects the floor temperature and how many people are present in the room; automatically switching to the optimal operating mode. With eight sensors that rotate a full 360° in 3-minute intervals, the i-see Sensor detects people’s positions within the room to provide direct or indirect airflow, as preferred.

Compact Design

Our ceiling cassettes are New Zealand’s favourite. With the lightweight unit sitting in your ceiling space, only the grille is visible providing easy, discreet installation into your home or office.

Horizontal Airflow

Advanced horizontal airflow eliminates uncomfortable draughts and improves airflow control. Six different discharge angles provide a lateral airflow advantage; ensuring air is evenly distributed across your entire room.

Quiet Operation

Starting from a hushed 25dBA, our Classic Cassette Series is the perfect solution for quiet comfort; allowing you to feel the warmth, not hear it.

Air Cleaning Filtration

A built in filter removes dust and contaminants keeping air purified and deodorised. The washable, long-life filter can be used for up to 2,500 hours with simple maintenance.

Specification :

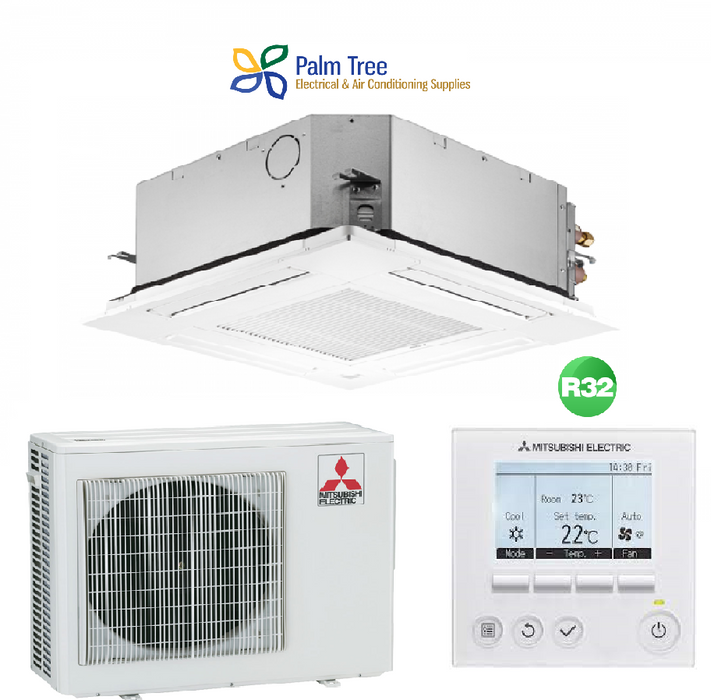

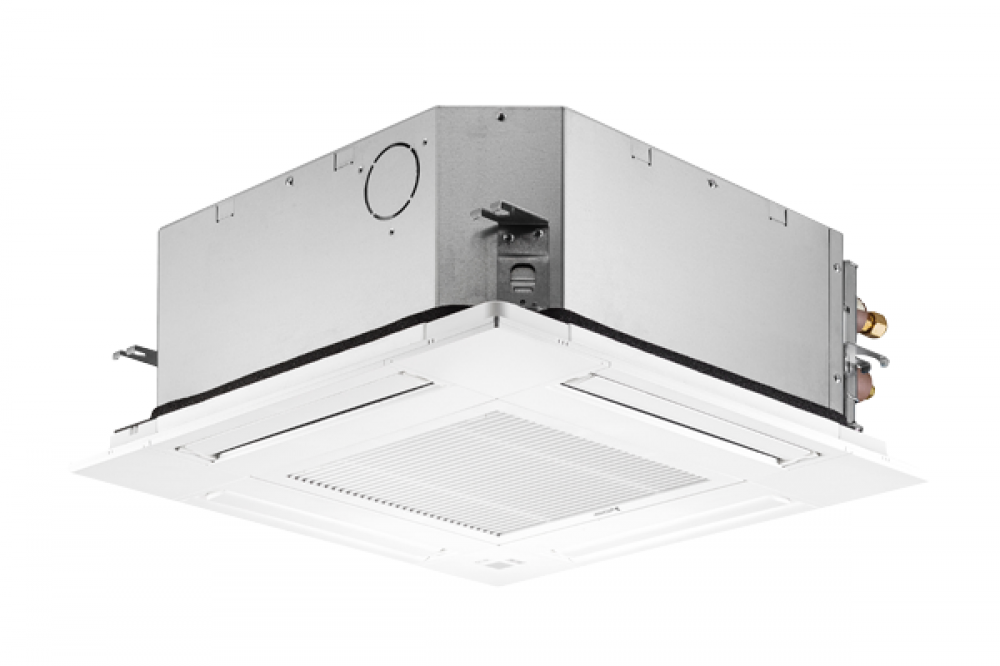

Indoor Unit SLZ-M35FA-A.TH

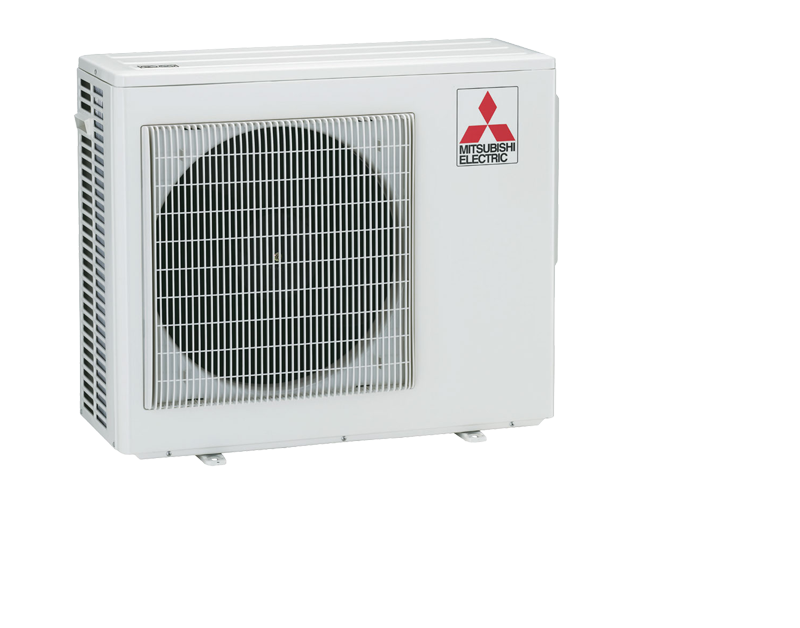

Outdoor Unit SUZ-M35VAD-A.TH
Panel Unit SLP-2FA
Power Supply V / Ø 230 / 1
Cooling Capacity [Min - Rated - Max] kW 1.4 - 3.5 - 3.9
Total input [Rated] kW 0.95
AEER/EER     3.61 / 3.68
Star Rating   2.5
Sound Pressure Level Indoor [Low/Med/Hi]  dB(A) 25 - 33 - 39
Outdoor  dB(A) 49
Running current [Rated] A 4.59
Air Volume (In) [Hi] L/s 108-150-192
Heating Capacity [Min - Rated - Max] kW 1.7 - 4.0 - 5.0
Total input [Rated] kW 1.08
ACOP/COP     3.63 3.70
Star Rating   3.0
Sound Pressure Level Indoor [Low/Med/Hi]  dB(A) 25 - 33 - 39
Outdoor  dB(A) 50
Running current [Rated] A 5.05
Air Volume (In) [Hi] L/s 108-150-192
Indoor Unit Dimensions [HxWxD] mm 245 x 570 x 570
Weight kg 15
Outdoor Unit Dimensions [HxWxD] mm 550 x 800 x 285
Weight kg 35
Panel Unit Dimensions [HxWxD] mm 10 x 625 x 625
Weight kg 3
Refrigerant Pipe Size Liquid mm ø6.35
Gas mm ø9.52
Max Pipe Length m 20
Max Pipe Height m 12
Guaranteed Operating Range [Outdoor] Cooling °C -10 to 46
Heating °C -10 to 24
