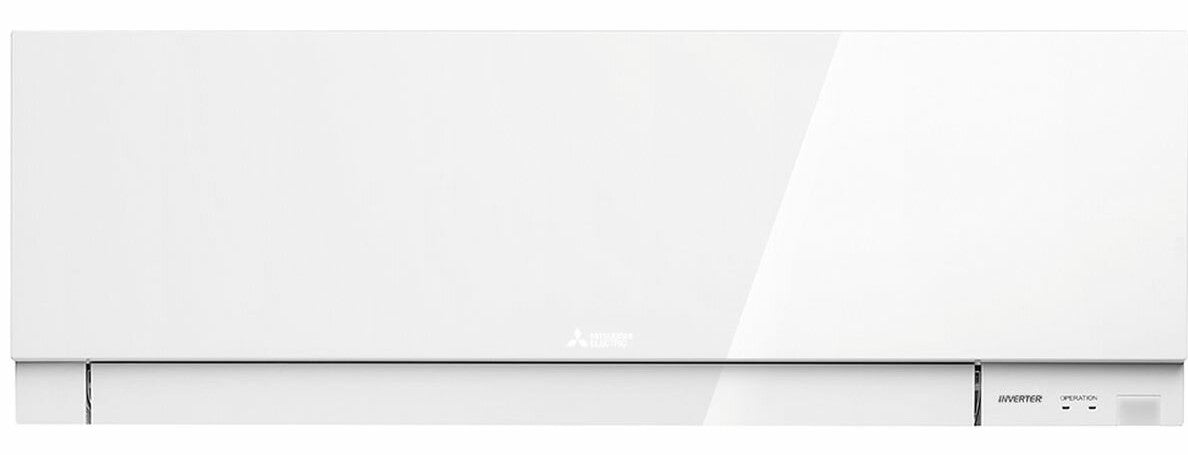

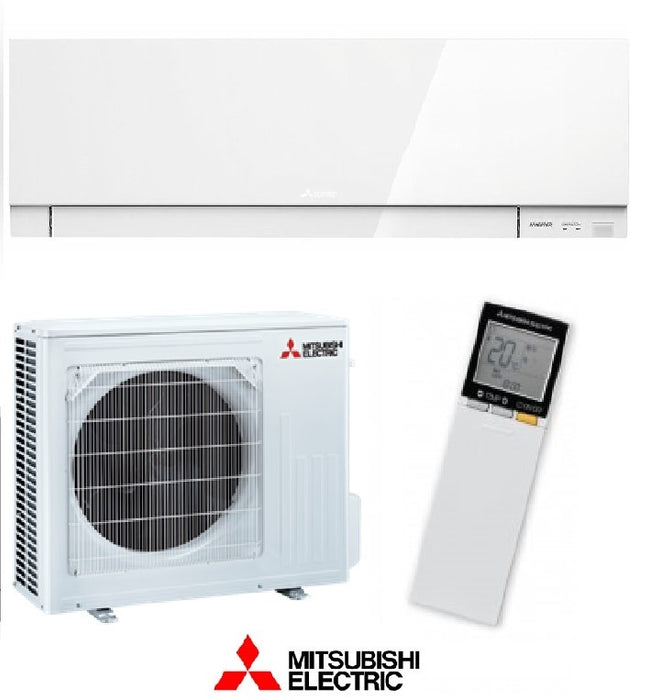

Mitsubishi EF Series White MSZEF42VGWKIT 4.2kW Split System
MSZ-EF Series
Mitsubishi Electric introduces the R32 MSZ-EF Series, expanding our line-up in the low Global Warming Potential (GWP) refrigerant. With just one third of the GWP of the R410A we aim to help reduce the household carbon footprint. The streamlined wall mounted indoor units have contemporary clean lines, expressing sophistication and quality, and is available in 3 stylish colours.
The Mitsubishi Electric Designer Series has been awarded the iF Product Design award for its simple and elegant design. The clean, flat surfaces and bevelled edges allow it to blend in discretely with modern interiors.
Features:
Stylish flat panel design
Our Designer Series wall mounted units are perfectly streamlined. Slimline with silver-bevelled edges and flat panel façade, they are designed to suit even the most discerning taste
3 Colours To Choose From
Designed to suit even those with the most discerning style. With elegant, clean lines the Designer Series is available in matte silver, a glossy black or classic white – complementing your home’s decor and existing appliances
IF Design Award
The iF Product Design Award is annually conferred by the iF International Forum Design. Every year the award attracts more than 2,000 product entries, which are judged by renowned experts, only the best receive the iF seal of outstanding design quality. The Mitsubishi Electric Designer Series has been awarded the iF Product Design award for its simple and elegant design. The clean, flat surfaces and bevelled edges allow it to blend in discreetly with modern interiors.
Sophisticated design
They’re durable, easy to use, slim and powerful, and all packaged up within a stunning design. Both indoor and outdoor units are subjected to rigorous durability testing which further improves design. The front panel is easily detached, making cleaning a breeze.
Advanced air cleaning system
The Nano Platinum Deodorising filter reduces airborne bacteria while improving air quality. The optional Electro Static Anti-Allergy Enzyme Filter effectively combats common allergens.
Specification :
| Model Name | MSZ-EF42VGW/B/S | |||
| Indoor Unit | MSZ-EF42VGW/B/S | |||
| Outdoor Unit | MUZ-EF42VG | |||
| Power Supply | V / Ø / Hz | 230 / 1 / 50 | ||
| Cooling | Capacity [Min - Rated - Max] | kW | 0.9 - 4.2 - 4.6 | |
| Total Input [Min - Rated - Max] | kW | 0.15 - 1.20 - 1.93 | ||
| AEER/EER | 3.50 / 3.49 | |||
| Star Rating | 2.0 | |||
| Running Current [Rated] | A | 5.4 | ||
| Sound Pressure Level | In [Lo - Mid - Hi - SHi] | dB(A) | 28 - 43 | |
| OUT(PWL) | dB(A) | - | ||
| Air Volume (In) [Lo-SHi] | L/s | 97 - 187 | ||
| Heating | Capacity [Min - Rated - Max] | kW | 1.4 - 5.4 - 6.3 | |
| Total Input [Min - Rated - Max] | kW | 0.26 - 1.46 - 2.05 | ||
| ACOP/COP | 3.70 / 3.71 | |||
| Star Rating | 3 | |||
| Running Current [Rated] | A | 6.5 | ||
| Sound Pressure Level | In [Lo - Mid - Hi - SHi] | dB(A) | 28 - 48 | |
| OUT(PWL) | dB(A) | - | ||
| Air Volume (In) [Lo-SHi] | L/s | 92 - 220 | ||
| Refrigerant Type | R32 | |||
| Indoor Unit | Input [Rated] Cooling / Heating | W | 14 / 31 | |
| Dimensions [HxWxD] | mm | 299 x 895 x 195 | ||
| Weight | kg | 11.5 | ||
| Outdoor Unit | Dimensions [HxWxD] | mm | 550 x 800 x 285 | |
| Weight | kg | 35 | ||
| Breaker Size | A | 10 | ||
| External Piping | Diameter (Gas/Liquid) | mm | 9.52 / 6.35 | |
| Max. Length/Height | m | 20 / 12 | ||
| Guaranteed Operating Range [Outdoor] | Cooling | °C | -10 to 46 | |
| Heating | °C | -15 to 24 | ||
