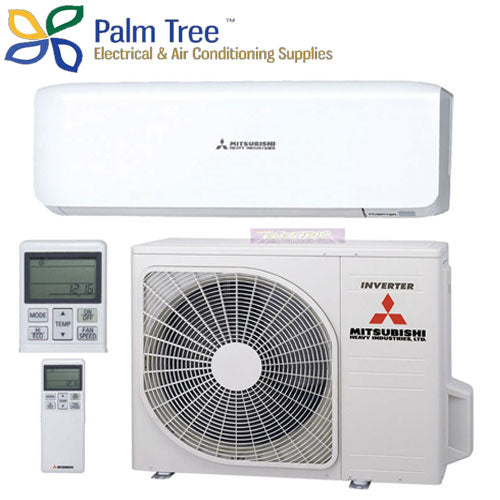

Mitsubishi Heavy Industries Bronte 9.5kW SRK95ZRA-W Reverse Cycle Split System
by Mitsubishi Electric
$3,100.00
Named by ProductReview as the best split system of 2022 and recommended by CHOICE®, the Bronte® split system incorporates advanced fan blade technology to efficiently deliver an industry leading, long reach airflow making it perfect for larger spaces.
It also incorporates 3D Auto Mode, various timers and ‘Clean Air Technology’ which captures and neutralises fine smoke particles, allergens, odours, bacteria and viruses.
The 9.5kW Bronte® is our largest split system and comes packed with range of convenient features and functions. It efficiently delivers an industry leading, 18m long reach airflow in cooling mode making it suitable for larger spaces such as a living or dining room.
Features:
- Advanced jet air technology delivering long reach airflow
- Allergen clear system to capture and eliminate allergens
- Wide range of convenient timer functions
- Energy efficient R32 refrigerant
- Optional Wi-Fi control
Specification :

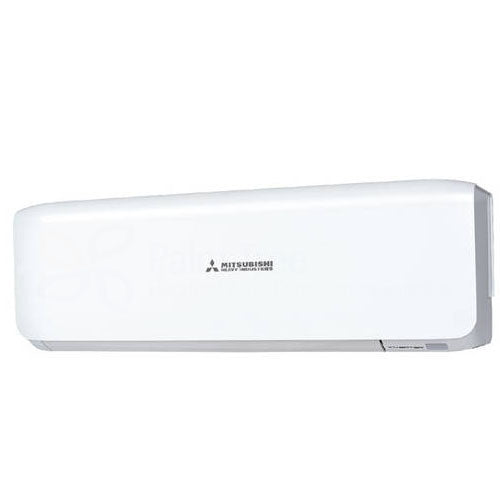

| Indoor | SRK95ZRA-W | ||

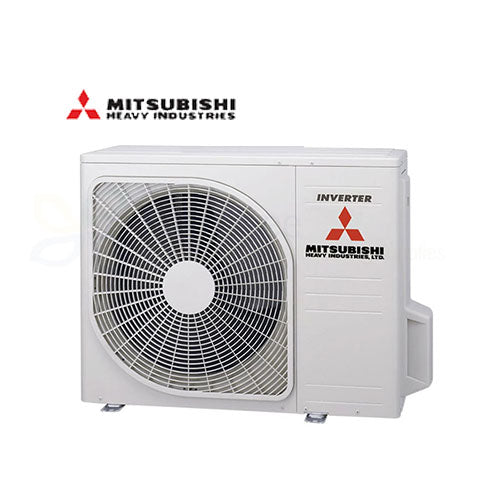

| Outdoor | SRC95ZRA-W | ||
| Power Suppply | 1 Phase 220-240V 50Hz | ||
| Capacity | Cooling T1 | kW | 9.5 (2.5 - 10.6) |
| Heating H1 | 10.3 (3.2 - 11.9) | ||
| Input | Cooling T1 | kW | 2.56 |
| Heating H2 | 2.64 | ||
| Max running current | A | 17.5 | |
| Energy Label | Cooling T1 | Stars | 2.5 |
| Heating T1 | 3 | ||
| EER | Cooling T1 | 3.71 | |
| COP | Heating H1 | 3.9 | |
| Sound Power Level (JIS C9612) | Cooling (Outdoor) | dB(A) | 69 |
| Heating (Outdoor) | 70 | ||
| Sound Pressure Level (JIS C9612) | Cooling (Indoor) | dB(A) | 48 - 45 - 40 - 26 |
| Heating (Indoor) | 48 - 42 - 37 - 29 | ||
| Silent mode sound pressure level | Cooling (Outdoor) | dB(A) | 50 |
| Heating (Outdoor) | 49 | ||
| Airflow | Cooling (Indoor) | l/s | 408 - 355 - 293 - 173 |
| Heating (Indoor) | 458 - 386 - 318 - 227 | ||
| External dimensions (HxWxD) | Indoor | mm | 339 x 1197 x 262 |
| Outdoor | 845 x 970 (+89) x 370 | ||
| Net weight | Indoor | kg | 16.5 |
| Outdoor | 70.5 | ||
| Refrigerant Piping | Liquid Line | mm | Ø9.52 |
| Gas Line | Ø15.88 | ||
| Connection Method | Flare Connection | ||
| Refrigerant R32 | Quantity | kg | 2 |
| Attached length of piping | m | Liquid line : 0.78 / Gas line : 0.71 | |
| Pre charged to pipe length | m | 15 | |
| Additional charge | g / m | 54 | |
| Maximum charge | kg | 2.81 | |
| Outdoor air temperature | Cooling | C | -15 to 46 |
| Heating | C | -15 to 24 | |
