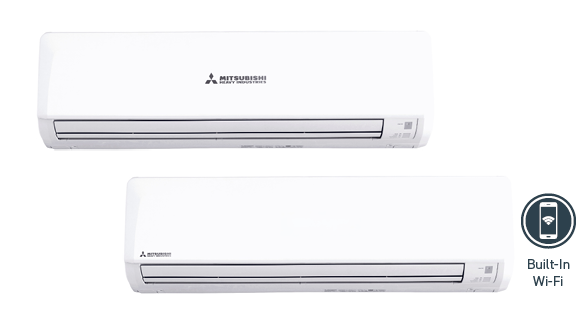

Mitsubishi Heavy Industries Bronte Reverse Cycle Split System Air Conditioner (8.0kW–9.5kW) – Wi-Fi
Mitsubishi Heavy Industries Bronte Reverse Cycle Split System – Built-in Wi-Fi
The Bronte series is Mitsubishi Heavy Industries' higher-capacity Wi-Fi-enabled wall-mounted reverse cycle split system, covering 8.0kW and 9.5kW for larger living areas and open-plan spaces. Both models include built-in Wi-Fi with the Smart M-Air app (Google Assistant and Amazon Alexa compatible) and use R32 refrigerant.
Please note: PTEA's existing catalogue also stocks an earlier-generation Mitsubishi Heavy Industries Bronte range (SRK-prefix models, non-Wi-Fi). This listing is for the current DXK/Bronte Wi-Fi generation and is a different product line — check the model number carefully if you are matching to a specific quote.
Specifications by capacity
| Capacity (option) | Indoor / Outdoor model | Cooling / Heating capacity | Refrigerant charge | Indoor dimensions / weight | Outdoor dimensions / weight |
|---|---|---|---|---|---|
| 8.0kW | DXK28ZRA-WF1 / DXC28ZRA-W | 8.0kW / 9.0–9.5kW* | R32, 1.6kg | 339×1197×262mm, 15.5kg | 750×880×340mm, 58kg |
| 9.5kW | DXK33ZRA-WF1 / DXC33ZRA-W | 9.5kW / 10.3kW | R32, 2.0kg | 339×1197×262mm, 16.5kg | 845×970×370mm, 69–70.5kg |
*Heating capacity for the 8.0kW model is shown as 9.0kW on some manufacturer/retailer sources and 9.5kW on others — both figures are within the range published by Mitsubishi Heavy Industries; confirm the current data sheet if an exact heating figure is required.
Features
- Built-in Wi-Fi with Smart M-Air app control from anywhere
- Google Assistant and Amazon Alexa voice control compatible
- R32 refrigerant, inverter compressor
- Single phase 220–240V power supply
- Energy rating (2019 GEMS, hot climate zone): Cooling 3.5 star / Heating 3.0 star (8.0kW model)
What's included
- Indoor wall-mounted unit and matching outdoor condenser
- Infrared remote control
- Installation manual and owner's manual
Warranty
Mitsubishi Heavy Industries Australia provides a 5-year parts and labour warranty on residential installations of this range (conditions apply). Confirm current warranty terms with Mitsubishi Heavy Industries Australia at time of purchase.
Installation considerations
These are larger-capacity systems — confirm circuit breaker size, isolator rating and outdoor unit clearance/mounting requirements against the installation manual before ordering. Installation must be carried out by a licensed refrigerant handling technician. This listing is for supply of the unit; contact PTEA for an installation quote for your property.
Common questions
Is this single or three phase? Both capacities are single phase, 220–240V.
Does it include Wi-Fi? Yes, built-in Wi-Fi is standard.
What refrigerant does it use? R32.
What controller does it use? Included infrared remote plus the Smart M-Air smartphone app via built-in Wi-Fi.
What indoor/outdoor models make up each set? See the specification table above.
What warranty applies? 5-year manufacturer's parts and labour warranty for residential installations, conditions apply.
Brand: Mitsubishi Heavy Industries | Series: Bronte | System Type: Wall-mounted split system | Refrigerant: R32 | Power Supply: Single phase 220–240V | Wi-Fi: Built-in | Warranty: 5 years (residential, conditions apply)
