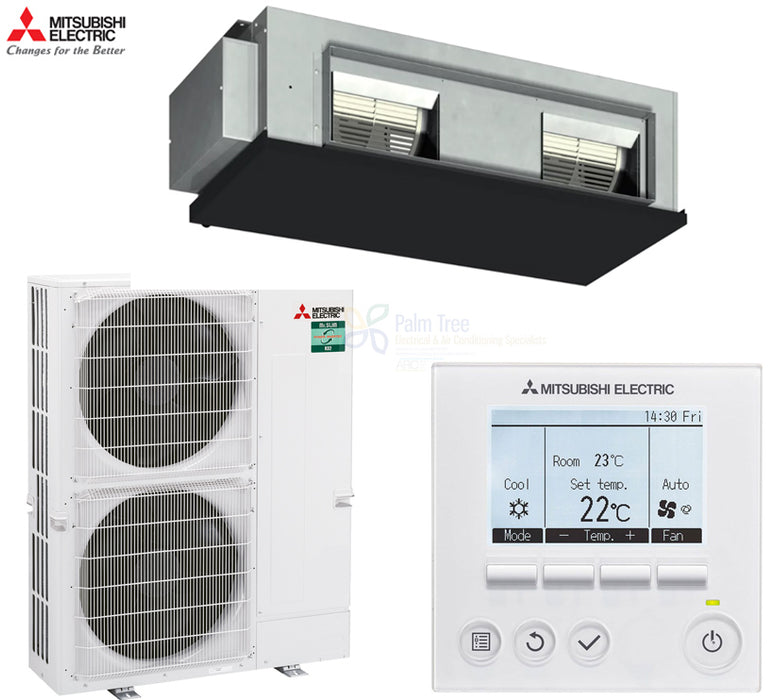

MITSUBISHI ELECTRIC PEAM100GAAVKIT 10.0kW Ducted Air Conditioner System 3 Phase
by Mitsubishi Electric
$4,300.00
One of the reasons why people love ducted air conditioning is because of its discrete yet highly efficient design. The Mitsubishi Electric range of PEA-M-GAA ducted air conditioners offers this and more, with advanced features and versatile customisation options. Choose the layout that best suits your home, and select various airflow options to ensure the best match for each area.
Specification :
| Indoor Unit | PEA-M100GAA | |||
|
Outdoor Unit
Refrigerant |
PUZ-ZM 100YKA2-A | |||
| R32 | ||||
|
Power Supply |
Source | Outdoor power supply | ||
|
Outdoor |
V: 230V, Single-phase, 50Hz Y: 400V, Three-phase, 50Hz |
|||
| Indoor | – | |||
|
Cooling Heating |
Capacity
[Min-Rated-Max] |
(kW) | 4.9-10.0-11.4 | |
| Total Input [Rated] | (kW) | 2.39 | ||
| AEER/EER | 3.93 / 4.18 | |||
| AEER [Part-load %] *1 | – | |||
|
Running Current [Rated] |
A |
4.05 |
||
| Sound | In (Lo-Mid-Hi) |
dB(A) |
39 – 42 | |
|
Pressure
Level |
Out (PWL) | 49 (69) | ||
| Air Volume (In) Lo-Mid-Hi L/S | 567 – 700 | |||
|
Capacity
[Min-Rated-Max] |
(kW) | 4.5-11.2-14.0 | ||
| Total Input [Rated] | (kW) | 2.51 | ||
| ACOP/COP *3 | 4.21 / 4.46 | |||
| Running Current [Rated] | (mm) | 4.26 | ||
| Sound Pressure | In (Lo-Mid-Hi) | dB(A) | 39 – 42 | |
| Level | Out (PWL) | dB(A) | 51 (69) | |
| Air Volume (In) Lo-Mid-Hi | 567 – 700 | |||
| Max. Running Current | A | 14.78 | ||
| Input [Rated] | kW | 0.21 / 0.21 | ||

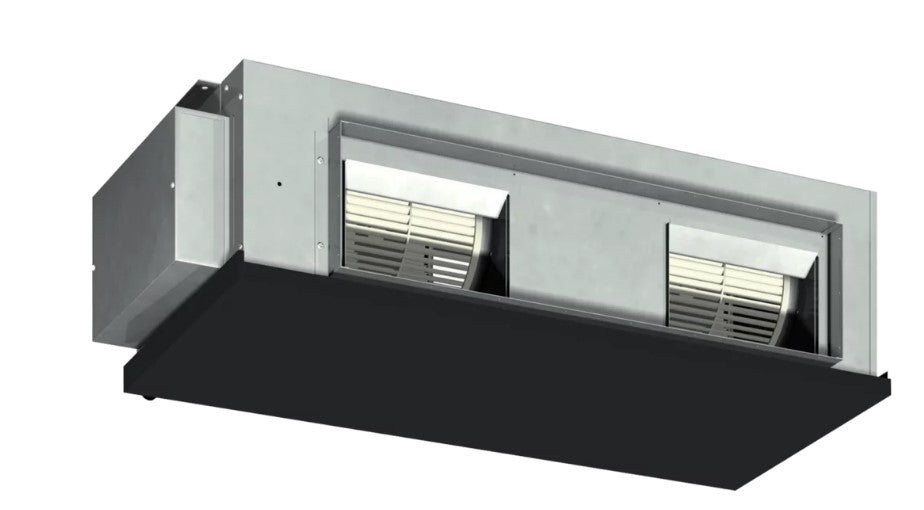

| Indoor Unit | Dimensions [HxWxD] | mm | 400 × 1400 × 634 | |
| Weight | kg | 63 | ||
| Static Pressure | Pa | 50 / 100 / 150 | ||
|

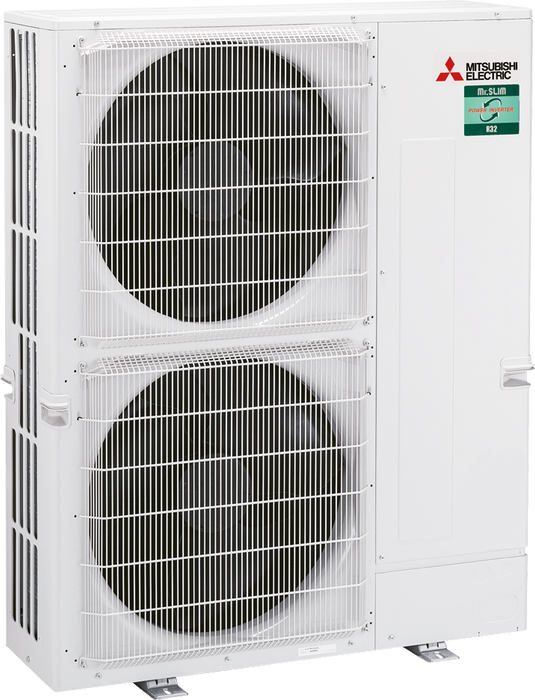

Outdoor Unit |
Dimensions [HxWxD] | mm | 1338 × 1050 × 330 (+40) | |
| Weight | kg | 114 | ||
| Breaker Size | A | 16 | ||
| Ext. Piping | Diameter [Gas/Liquid] | mm | 15.88 / 9.52 | |
| Max. Length/Height | m | 75 / 30 | ||
| Guaranteed Operating Range [Outdoor] | Cooling *2 | °C | -5 (-15) ~ 52 | |
| Heating | °C | -20 ~ 21 | ||
| Supply Air Duct | mm | 921 x 250 | ||
| Return Air Duct | mm | 1102 x 330 | ||
| Precharge Refrigerant | kg | 4 (30m) | ||
| Additional Refrigerant | Per M (g) | 60 | ||
