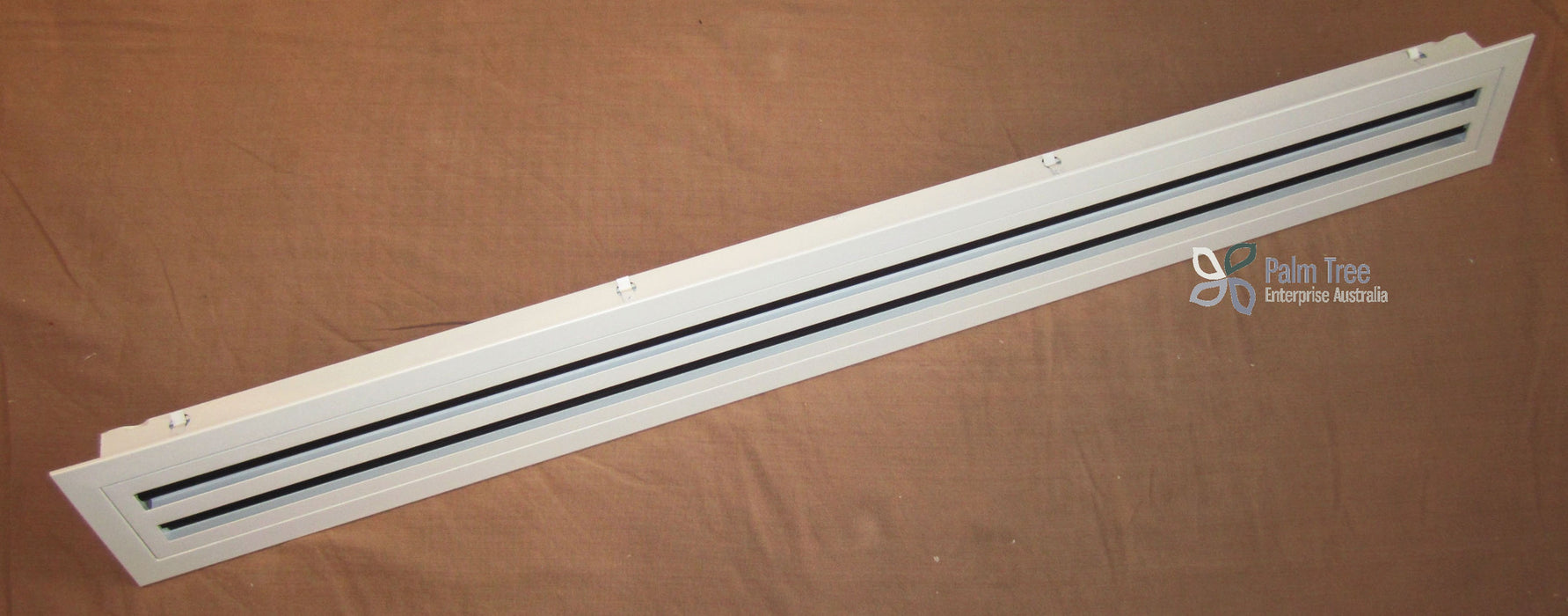

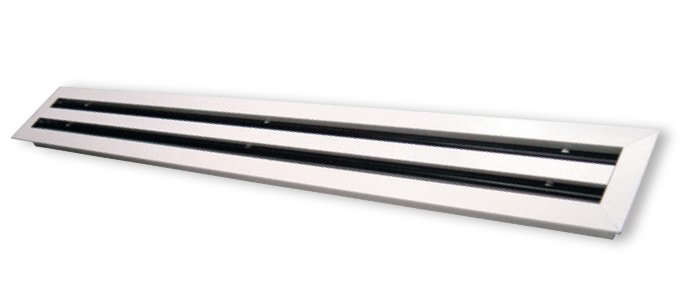

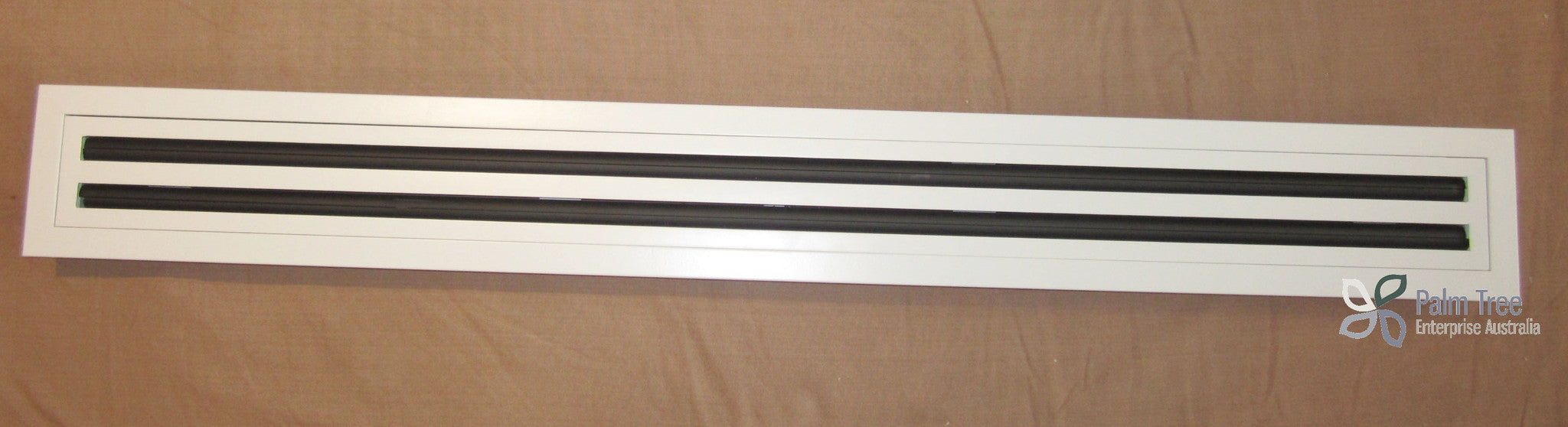

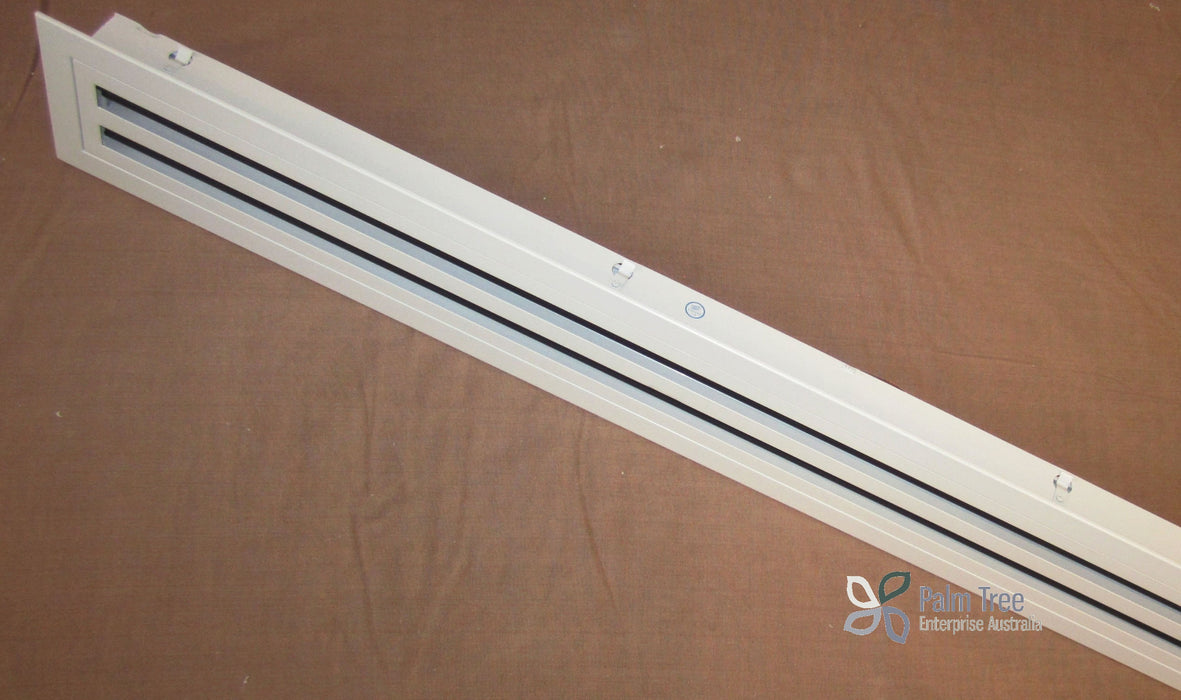

Linear Slot Diffuser - Fixed Core
Slot diffusers can be installed individually in set lengths or in a continuous line. They can also be installed in any type of ceiling application.

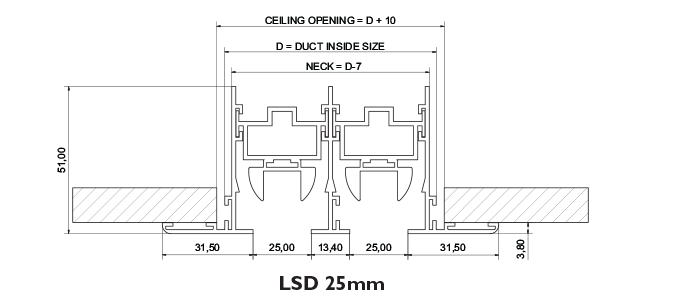

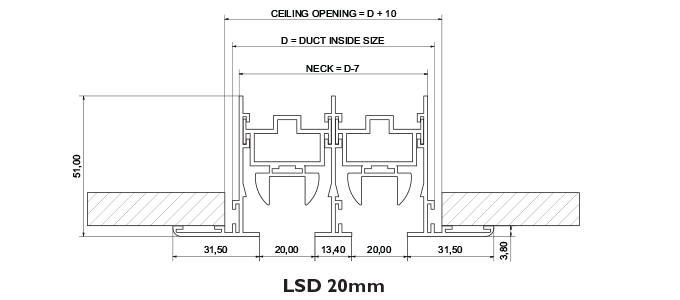

The modules are available with a 20mm or 25mm Slot with the number of slots ranging from 1 to 8 slots and are further available as fixed or removable core. (Fixed Core – Model LSD-FC, Removable Core – LSD-RC.

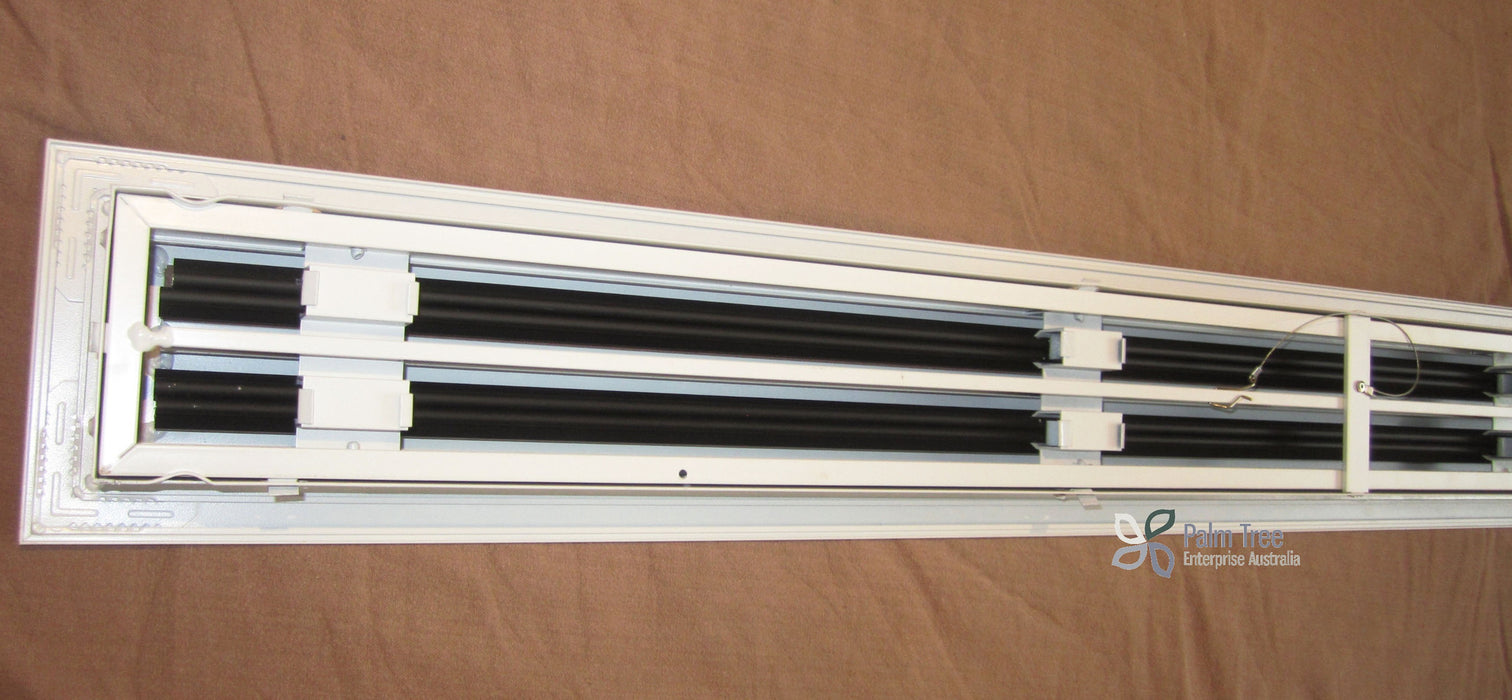

The air pattern control is adjustable from the diffuser face and is achieved by means of an adjustable pattern control with each slot, enabling a full 180º air pattern adjustment. The suggested volume control should be from the main duct run take-off, or from a butterfly damper fitted to the inlet of the cushion head box.
Construction is from extruded aluminium and the recommended maximum length for each section is 3 metres. Standard finish is powder coat white while other finishes are available to suit the interior and architectural design requirements.
|Item # / Slot||Slot Width (mm)||Nominal Neck Size (mm/inch)||Face Size (mm/inch)|
|245297 / 1||20||1200x35 / 47x1||1242x86 / 49x3|
|245298 / 2||20||1200x69 / 47x3||1242x124 / 49x5|
|245310 / 3||20||600x102 / 24x4||642x162 / 25x6|
|245299 / 3||20||1200x102 / 47x4||1242x162 / 49x6|
